LC chromatography system S 712
HPLCsamplingUV/VIS

LC chromatography system
LC chromatography system
Add to favorites
Compare this product


Characteristics

Type
LC, HPLC
Applications
sampling
Detector type
UV/VIS

Description

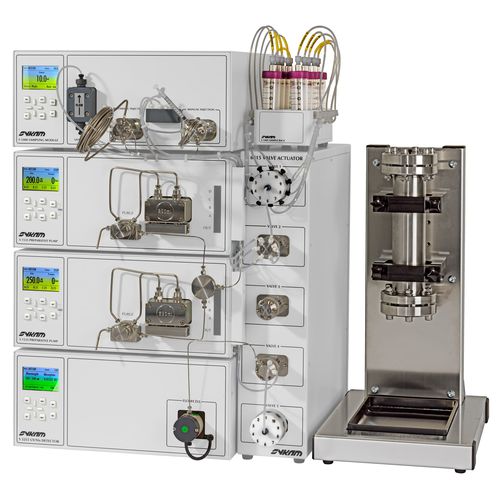

A binary high-pressure gradient mixing stainless steel system based on two pumps with a flow range of up to 150 ml/min or 250 ml/min @ 400 bar. Description The Sykam S 712 Preparative LC System is the basic configuration high pressure mixing binary gradient HPLC system. It is based on two Sykam S 1535 pumps with a choice of the version up to 150 ml/min version or up to 250 ml/min. Together with the S 5400 sampling module, the S 3255 UV/Vis detector and the optional choices for fraction collection, the S 712 system is suitable for common preparative gradient HPLC. The system can easily be expanded with additional functionalities with valves, eluent monitors, fraction collectors and additional detectors if further needs arise. It makes the S 712 system a safe investment for a standard preparative gradient HPLC while ensuring flexibility when further needs for more complex chromatography applications become of interest at a later date. Technical Specifications Flowrate range - Up to 150 ml/min or up to 250 ml/min Max. pressure - 400 bar Gradient - High-Pressure Mixing Binary Gradient Detector - UV/Vis (190 – 800 nm), pathlength 0.5 mm Sample injection - Automatic, manual, 10 ml sample loop, 2 ml sample loop

Catalogs

No catalogs are available for this product.
