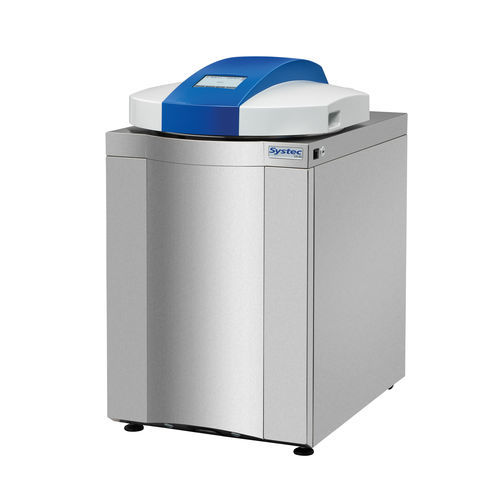

Laboratory autoclave Systec VX-Serie

for sterilization servicestestmicrobiology

The Systec VX-Series are top-loading vertical laboratory autoclaves offered in eight sizes with chamber nominal volumes from 40 to 150 liters, designed to provide a small footprint with high chamber capacity for efficient loading of standard media bottles and Erlenmeyer flasks. The series supports validated sterilization tasks and can be configured with numerous options for process optimization, documentation and safety.

Available models and chamber dimensions / volumes

• Systec VX-40 — Chamber Ø x depth: 400 x 320 mm — Volume total / nominal: 51 / 40 L — Tech drawing: https://www.systec-lab.com/wp-content/uploads/2025/11/Aufstellzeichnungen-DN400-VX-40-55-Rev-2.1.pdf
• Systec VX-55 — Chamber Ø x depth: 400 x 400 mm — Volume total / nominal: 59 / 55 L — Tech drawing: https://www.systec-lab.com/wp-content/uploads/2025/11/Aufstellzeichnungen-DN400-VX-40-55-Rev-2.1.pdf
• Systec VX-65 — Chamber Ø x depth: 400 x 500 mm — Volume total / nominal: 73 / 65 L — Tech drawing: https://www.systec-lab.com/wp-content/uploads/2025/11/Aufstellzeichnungen-DN400-500-V-Serie-Rev-2.1.pdf
• Systec VX-75 — Chamber Ø x depth: 400 x 600 mm — Volume total / nominal: 85 / 75 L — Tech drawing: https://www.systec-lab.com/wp-content/uploads/2025/11/Aufstellzeichnungen-DN400-500-V-Serie-Rev-2.1.pdf
• Systec VX-95 — Chamber Ø x depth: 400 x 750 mm — Volume total / nominal: 104 / 95 L — Tech drawing: https://www.systec-lab.com/wp-content/uploads/2025/11/Aufstellzeichnungen-DN400-500-V-Serie-Rev-2.1.pdf
• Systec VX-100 — Chamber Ø x depth: 500 x 500 mm — Volume total / nominal: 117 / 100 L — Tech drawing: https://www.systec-lab.com/wp-content/uploads/2025/11/Aufstellzeichnungen-DN400-500-V-Serie-Rev-2.1.pdf
• Systec VX-120 — Chamber Ø x depth: 500 x 600 mm — Volume total / nominal: 137 / 120 L — Tech drawing: https://www.systec-lab.com/wp-content/uploads/2025/11/Aufstellzeichnungen-DN400-500-V-Serie-Rev-2.1.pdf
• Systec VX-150 — Chamber Ø x depth: 500 x 750 mm — Volume total / nominal: 166 / 150 L — Tech drawing: https://www.systec-lab.com/wp-content/uploads/2025/11/Aufstellzeichnungen-DN400-500-V-Serie-Rev-2.1.pdf

Overview of standard capabilities and functions

• Integrated, separate steam generator (integrated into housing but separated from sterilization chamber) enabling fast heat-up (empty chamber to 121 °C in ~10 minutes) and improved ventilation; steam condensing (PT-100-regulated) for condensate handling.
• Housing, support frame and pressure vessel made of corrosion-resistant stainless steel; pressure vessel specifically stainless steel 1.4404 (AISI 316L).
• Standard temperature and pressure range up to 140 °C and 4 bar absolute pressure; optional extension to 150 °C / 5 bar available (retrofittable with adapted safety/control components).
• Touch-screen control option (5.7 inch) supporting numeric/graphical process display and up to 100 user-configurable sterilization programs (7 pre-defined standard programs included).
• Advanced safety: automatic circumferential door locking with heat-resistant silicone seal, door locks controlled by interior temperature and only releases after safe depressurization; adjustable automatic door opening at end of program.
• Extensive process features: calculation of F0 value, special programs (e.g. Durham tubes), special destructive-sterilization program with fractional heating, temperature holding for liquids after program end.
• Autofill (automatic demineralized water feed) and additional temperature sensors (including sensor in condensate exhaust); flexible PT-100 (class A) temperature sensor for reference measurements in liquids.
• Documentation and data management: internal memory sized to store process data for at least 10 years; integrated batch documentation with export as PDF and CSV; options for Save to Folder (FTP/SFTP), integrated printer and advanced CFR 21 Part 11 solution (AuditTrail, electronic signatures, extended user account control).
• User and access control: standard user account control with three pre-configured groups (Administrator, Operator, Supervisor); code-secured access rights for parameter changes and safety-relevant interventions.
• Interfaces and connectivity: standard electronic data output; optional SCADA/OPC-UA connection and network/time synchronization via time server; RS-232 listed among rear connections.

Options and process-optimization accessories

• Rapid cooling systems (multiple methods): mantle cooling with cooling water (with or without support pressure), cooling with ambient air ventilation, spray cooling with recirculated sterile water and support pressure.
• Radial ventilator and Ultracooler (mounted in door) to accelerate cooling and reduce cooling times significantly (Ultracooler + mantle cooling + ventilator can reduce cooling times by up to ~90% depending on load).
• Vacuum system for validated sterilization of solids and waste in disposal bags (fractionated pre-vacuum), plus Superdry deep-vacuum drying for solids (only with vacuum system).
• Exhaust air filtration and condensate inactivation (cartridge with PTFE membrane 0.2 μm) for safe sterilization of hazardous biological substances.
• Options for documentation and compliance: integrated printer, Save to Folder (FTP/SFTP), Advanced CFR 21 Part 11 including AuditTrail and electronic signatures.
• Accessories: stainless steel loading baskets and inserts, lifting device for heavy loads, other baskets/inserts and transport/loading systems available on request.

Caractéristiques / spécifications techniques

• Brand: Systec (Systec VX-Series)
• Model / Series: Systec VX-Series
• Chamber material: stainless steel 1.4404 (AISI 316L)
• Available nominal chamber volumes: 40 L, 55 L, 65 L, 75 L, 95 L, 100 L, 120 L, 150 L (see model list for corresponding Ø x depth)
• Maximum standard sterilization: 140 °C / 4 bar absolute; optional: 150 °C / 5 bar absolute (retrofittable)
• Steam generation: integrated separate steam generator (inside housing but separated from chamber)
• Control & HMI: touchscreen option (5.7"), up to 100 sterilization programs, program customization, numeric/graphical process display
• Data & documentation: internal memory (≥10 years), export PDF/CSV, optional Save to Folder (FTP/SFTP), integrated printer, optional Advanced CFR 21 Part 11 (AuditTrail, electronic signatures)
• Safety features: automatic circumferential door-locking, temperature-controlled door-release, code-secured access rights, validation port for measuring equipment
• Cooling options: conventional regulated venting, rapid cooling (mantle cooling, radial ventilator, Ultracooler, spray cooling), thermostatically controlled water-cooled wastewater
• Vacuum & drying: optional vacuum system (fractionated pre-vacuum), Superdry for drying solids (requires vacuum)
• Documentation/communication interfaces: USB export, network export (with Save to Folder), optional OPC-UA (SCADA), RS-232 noted on rear connections
• Number of sterilization programs (storage): up to 100 (7 predefined)
• Electrical supply (standard): VX-40 / VX-55: 220-240 V, 50/60 Hz, 16 A; VX-65 to VX-150: 380-400 V, 50/60 Hz, 16 A. Other voltages available on request; country-specific deviations possible.
