Laboratory autoclave Systec DX series

for sterilization servicesbenchtopcompact

Product description

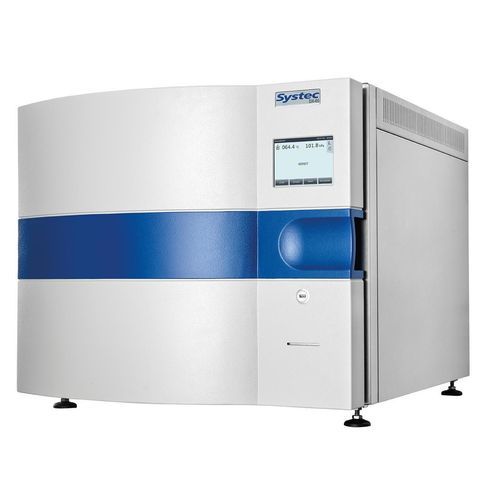

The Systec DX-Series are front-loading horizontal bench-top autoclaves available in 7 sizes with 25 to 200 liters usable chamber volume. Compact external dimensions with an optimized usable internal volume suitable for standard medium bottles and Erlenmeyer flasks. Designed for laboratory sterilization applications including options for validatable sterilization processes and process optimization.

Models - Chamber dimensions and volumes
Type | Chamber dimensions Ø x depth (mm) | Chamber volume (liters total / nominal)
Systec DX-25 | 320 x 315 | 30 / 25
Systec DX-40 | 320 x 500 | 45 / 40
Systec DX-65 | 400 x 500 | 73 / 65
Systec DX-90 | 400 x 750 | 104 / 90
Systec DX-100 | 500 x 500 | 119 / 100
Systec DX-150 | 500 x 750 | 168 / 150
Systec DX-200 | 500 x 1000 | 217 / 200

Electrical connection
Systec DX-25 and Systec DX-45: Voltage 220–240 V, 50/60 Hz, 16A
Systec DX-65 to Systec DX-200: Voltage 380–400 V, 50/60 Hz, 16A
Other power supplies available on request. Country-specific deviations possible.

Standard features

• Integrated, separate steam generator (integrated in the housing but separated from the sterilization chamber)
• Pressure vessel made of corrosion-resistant stainless steel 1.4404 (AISI 316L)
• Housing, support frame and pressure vessel made of corrosion-resistant stainless steel
• Insulation with high-quality melamine foam suitable for clean-room use
• Temperature and pressure range (standard): up to 140 °C, 4 bar absolute pressure
• Touch screen control (large 5.7-inch interface) for operation, numeric and graphical process display
• Number of sterilization programs: up to 100 (7 pre-defined)
• Code-secured access rights for parameter changes and safety-relevant interventions
• Internal memory capacity for storing data backups for at least 10 years
• Timer for programmable start time
• Additional temperature sensor in condensate exhaust
• Flexible PT-100 temperature sensor (class A) for reference vessel monitoring
• Special program for Durham tubes
• Special program for destructive sterilization with fractional heating for improved venting
• Calculation of F0 value
• Waste water temperature is water-cooled and thermostatically controlled
• Adjustable automatic opening of the door at end of program (approx. 15° automatic opening restricted for safe cooling/drying)
• User account control (standard: three pre-configured user groups: Administrator, Operator, Supervisor)
• Validation port for introducing measuring equipment
• Integrated batch documentation with export as PDF and CSV
• Time synchronization with time server via network/internet

Available options (selection)

• Extension of temperature and pressure ranges to 150 °C / 5 bar absolute pressure (can be retrofitted)
• Rapid cooling systems for efficient and safe cooling of liquids
• Radial ventilator and Ultracooler to speed up cooling (mounted in chamber door so usable space not reduced)
• Mantle cooling with cooling water and support pressure (to reduce recooling times)
• Vacuum system for validated sterilization of solids and waste in disposal bags (fractionated pre-vacuum)
• Superdry for drying solids (only in combination with vacuum system)
• Exhaust air filtration including condensate deactivation for sterilization of hazardous biological substances
• Exhaust air filtration and condensate inactivation (autoclave sterile filter with PTFE 0.2 μm membrane)
• Integrated printer for batch documentation (optional)
• Save to Folder (automatic export to FTP/SFTP/FTPS) and network documentation options
• Advanced CFR 21 Part 11 solution including AuditTrail, electronic signatures and extended user account control (optional)

Technology & Operation

• Steam generation: integrated steam generator separated from the chamber. Advantages include no heating elements/reservoir in chamber, short heating time (with stand-by pre-heating: approx. 10 min to 121 °C with empty chamber), improved air removal, quicker cooling and immediate availability of steam after cooling.
• Condensation of exhaust steam via PT-100-regulated cooling system to protect waste water piping and prevent odors.
• Operation by touch-screen allows creation and naming of programs, graphical/numerical display of process data, and full parameter control.
• Pre-defined standard programs: Solids, Waste bags, Liquid waste, Liquids, Cleaning, Vacuum test*, Bowie-Dick test* (*in combination with vacuum device). Expandable up to 100 programs.

Applications (sterilization load & process guidance)
Reference matrix (Ventilation / Cooling / Drying / Other). Symbols: + Recommended; ? Possibly acceptable; – Not possible
Load type | Gravitation | Simple pre-vacuum | Pulsed excess pressure | Fractionated pre-vacuum | Conventional cooling | Rapid cooling with support pressure | Surface drying without vacuum | Drying with vacuum + Superdry | Exhaust air filtration
Liquids | + | ? | – | – | ? | + | ? | – | –
Unpacked non hollow items | + | + | + | + | | | ? | + |
Porous materials (filters, fabrics) | – | ? | ? | + | | | – | + |
Hollow items (pipette tips, empty glassware, tubes) | – | – | – | + | | | – | + |
Contaminated waste in destruction bags | – | – | ? | + | | | – | – | +

Sterilization of liquids - cooling

• Combined temperature and pressure regulation reduces heat-up times for liquids (up to 50% shorter heat-up as standard).
• Optional rapid cooling systems (ambient air ventilation, mantle cooling with cooling water, mantle cooling + support pressure, radial ventilator, Ultracooler, spray cooling with recirculated sterile water) significantly reduce cooling times and prevent boiling/loss of culture media by using sterile-filtered support pressure during cooling.
• PT-100 reference vessel monitoring ensures the sterilization period begins only when liquid reaches target temperature; lid opening is restricted until liquid cools to safe temperature (≥ 80 °C) to prevent delayed boiling.

Characteristics / Technical specifications

• Series / Model family: Systec DX-Series
• Available nominal chamber volumes: 25 L, 40 L, 65 L, 90 L, 100 L, 150 L, 200 L
• Chamber material: Stainless steel 1.4404 (AISI 316L)
• Standard max sterilization: 140 °C, 4 bar absolute pressure
• Optional max sterilization: 150 °C, 5 bar absolute pressure (with adapted control/safety components)
• Steam generator: Integrated, separate from chamber
• Control: Touch screen (approx. 5.7 inch), up to 100 programs, user account control (3 default groups)
• Data storage: Internal memory for at least 10 years; batch documentation export as PDF/CSV; optional Save to Folder (FTP/SFTP/FTPS)
• Electrical: DX-25 / DX-45: 220–240 V, 50/60 Hz, 16 A; DX-65 to DX-200: 380–400 V, 50/60 Hz, 16 A
• Cooling options: mantle cooling, radial ventilator (airflow 71 m³/h), Ultracooler, spray cooling
• Vacuum: optional vacuum system with fractionated pre-vacuum for validated sterilization of solids and waste bags
• Documentation options: integrated printer (optional), advanced CFR 21 Part 11 solution (optional)
