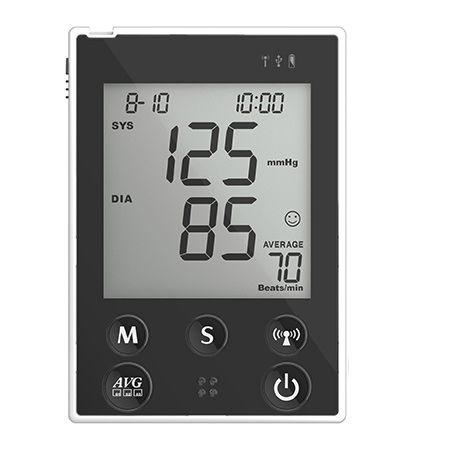

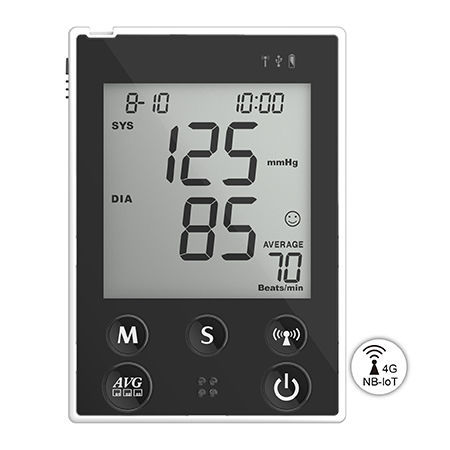

Cuff-mounted blood pressure monitor TD-3261

oscillometricautomaticwireless

Product Overview
The TD-3261 is a 4G/IoT dual-function clinical monitor combining blood pressure and blood glucose measurement in a single device for remote patient monitoring and telehealth deployments. It enables automatic cellular data transmission and supports at‑home or clinic workflows for diabetes and hypertension management.

Key features

• Dual function: blood pressure (BP) + blood glucose (BG)
• Glucose enzyme: GOD
• Sample volume: 0.5 μL
• Glucose reaction time: 5 seconds
• Glucose measurement range: 20–600 mg/dL (1.1–33.3 mmol/L)
• Connectivity: 4G (TD-3261G) with NB‑IoT variant
• Smart auto-cycling function for BP
• Memory capacity: up to 864 records

Overview details
The device integrates a capillary blood glucose meter and an oscillometric upper‑arm blood pressure monitor to streamline remote monitoring of patients with diabetes and/or hypertension. Designed for integration with telehealth services, it simplifies data capture and transmission for clinical review.

Companion App
The free Healthy Check app (iOS and Android) synchronizes device measurements, stores historical data and enables export of readings for clinical follow-up.

Specifications
Power source: Rechargeable Li‑Ion battery and external DC 6V
Memory capacity: up to 864 records
Communication: 4G (TD-3261G); NB‑IoT variant available
Power saving timeout: 180 seconds
Monitor size (without cuff): 147 mm (L) x 105 mm (W) x 80 mm (H); Weight: 500 g (including battery)
Operating conditions: 10°C to 40°C

BLOOD GLUCOSE MONITOR
Enzyme type: GOD
Sample size / reaction time: 0.5 μL / 5 seconds
Measurement range: 20–600 mg/dL (1.1–33.3 mmol/L)
Hematocrit range: 20%–60%
Precision: SD < 5 mg/dL at < 100 mg/dL; CV < 5% at 100 mg/dL
Accuracy: ±15 mg/dL if ≤ 100 mg/dL; ±15% if > 100 mg/dL
Ketone warning: Yes

BLOOD PRESSURE MONITOR
Pressure accuracy: ±3 mmHg or ±2% of reading
Heart rate accuracy: ±4% of reading
Measurement ranges: Systolic 60–250 mmHg; Diastolic 30–180 mmHg; Pulse 40–199 / min
Packaging: 12 units per carton; Gross weight per carton: 12 kg; Carton dimensions: 43.3 x 37.8 x 36.5 cm

Accessories

• Medium cuff (CF3312): upper arm circumference 24–35 cm
• Wide-range cuff (CF3314): upper arm circumference 24–43 cm

Technical specifications

• Model: TD-3261
• Power: Rechargeable Li‑Ion battery / External DC 6V
• Communication: 4G (TD-3261G); NB‑IoT variant
• Memory: up to 864 records
• Auto power-off: 180 seconds
• Dimensions (without cuff): 147 x 105 x 80 mm; Weight: 500 g (including battery)
• Operating temperature: 10°C–40°C
• Blood glucose: enzyme GOD; sample 0.5 μL; reaction time 5 s; range 20–600 mg/dL; hematocrit 20%–60%
• Blood glucose precision/accuracy: SD <5 mg/dL at <100 mg/dL; CV <5% at 100 mg/dL; accuracy ±15 mg/dL (≤100 mg/dL) / ±15% (>100 mg/dL)
• Blood pressure: accuracy ±3 mmHg or ±2% of reading; heart rate accuracy ±4%
• BP measurement ranges: Systolic 60–250 mmHg; Diastolic 30–180 mmHg; Pulse 40–199/min
• Packaging: 12 units per carton; Gross weight 12 kg; Carton size 43.3 x 37.8 x 36.5 cm
