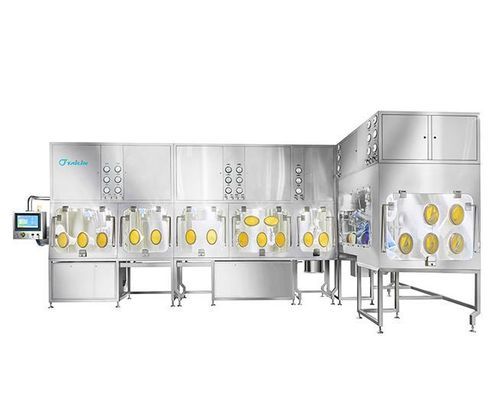

Containment isolator

for the pharmaceutical industrytransferfilling

Product overview
Tailin containment isolator is designed to protect operators during operations such as weighing, dispensing, drying, pressing and filling of highly potent and toxic substances. It is intended for pharmaceutical, cosmetic, bioproduct research and physico-chemical laboratory applications. The system creates turbulent airflow via a high-pressure exhaust fan and maintains negative pressure inside the work area to prevent cross-contamination between internal and external environments, ensuring operator and environmental safety.
Key features

• Complies with OEB5 personal protection requirements; validated by third-party testing (OEL
• Internal explosion-proof design.
• Integrated process support: rotary evaporation, filtration, drying, weighing, dispensing and capping.
• Weighing accuracy: 1/10,000.
• Half-suit operation available for the rotary evaporation chamber to maximize working radius.
• Installed on general background to provide a static Class C internal environment.
• Continuous liner system for material transfer.
• Siemens touchscreen + PLC control available.
• H14 PUSH-PUSH HEPA filtration (high-containment HEPA configuration).
• Highly customizable.

Applications

• High-potency laboratories: weighing, dispensing, sampling, solution preparation, analysis, moisture titration, infrared scanning and related operations.
• Active Pharmaceutical Ingredients (APIs): centrifugation, filtration, drying, mixing, milling, weighing, dispensing, capping and associated processes.
• Solid dosage manufacturing: granulation, drying, mixing, tablet compression, coating and other solid formulation processes.

Specifications
Fresh air supply: ≥600 m³/h
Net weight: approx. 3000 kg
Utilities: clean compressed air 0.6–0.8 MPa
Power (isolator only): 380 V, 16.5 kW
Overall dimensions (L×W×H): 7122×3377×2985 mm
Doors/windows: inflatable door seals; observation window 15 mm tempered glass
Exhaust: top exhaust port; ducting to outdoor connection
