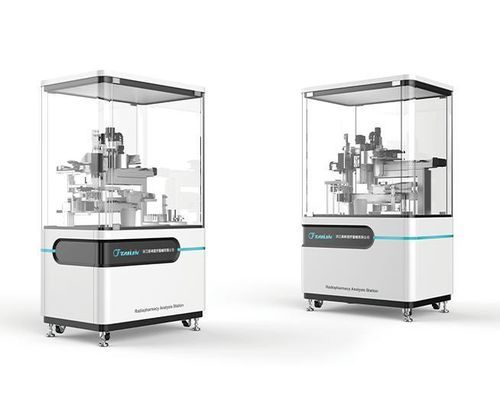

Nuclear medicine shielded cell

laboratoryfor radiopharmacyR&D

Product introduction
Compact radiopharmaceutical quality-control (QC) analysis station designed for R&D and production environments. The unit integrates shielding and isolation to reduce operator exposure and contamination risk, and combines automated liquid handling, high-precision imaging and CdZnTe gamma detection for rapid routine QC of radiopharmaceuticals.

Key features

• Automated sample spotting, plate development and detection for consistent, repeatable results.
• High-precision dispensing and fixed-light camera imaging enabling AI-assisted interpretation.
• Dynamic chromogenic assay with automatic sampling and dilution; typical mother liquor consumption ≤1 ml, can be as low as 5 µL for specific procedures.
• CdZnTe (cadmium zinc telluride) detector providing ~2% energy resolution at room temperature.
• Designed to minimize radiation exposure to personnel; integrated shielding (lead equivalent 10–30 mm) and equipment surface dose <2.5 μSv/h.
• Compact footprint; electrical: 220 V, power consumption 2 kW; weight <1600 kg.

Applications

• QC and R&D of radiopharmaceuticals (PET/SPECT isotopes).
• Processing and testing of radionuclides: 18F, 68Ga, 177Lu, 99mTc, 125I, 131I, 14C, 90Y, 225Ac, 89Sr, 89Zr, etc.
• Radiopharmacy production lines and release testing.
• Nuclear medicine departments and scientific research institutions.

Specifications
Detectable radionuclides: 18F, 68Ga, 177Lu, etc.
Sample requirement: ≤0.5 ml (typical ≤1 ml; procedure-specific consumption down to 5 µL)
Test items: pH (incl. pH paper), endotoxin, dynamic chromogenic method, activity / specific activity, well-type ionization chamber
Liquid distribution: automatic sampling and dilution for QC
Surface radiation dose (equipment): <2.5 μSv/h
Lead shielding equivalent: 10–30 mm
Weight: <1600 kg
Table illuminance: 1000 lx
Power supply: 220 V
Power: 2 kW

Technical characteristics

• Detector: CdZnTe solid-state gamma detector, ~2% energy resolution.
• Operating conditions: room temperature operation; compact footprint suitable for shielding enclosure.
• Sample handling: micro-volume capable automated dispensing and dilution; integrated plate development and imaging.
• Safety: engineered shielding and isolation to limit operator dose during routine tests.
• Integration: compatible with laboratory QA workflows for radiopharmacy and nuclear medicine.
