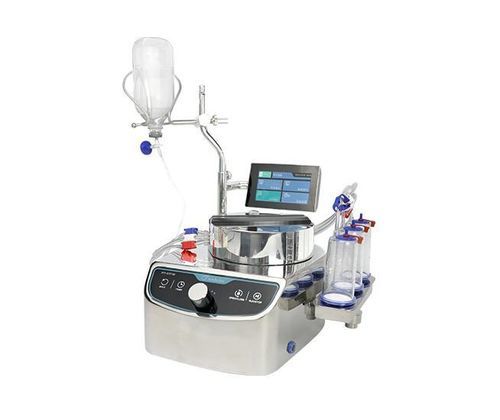

Sterility testing pump HTY-STP100

Product overview
The Tailin HTY-STP100 is a sterility test pump engineered for pharmaceutical and medical laboratory membrane filtration. It integrates a redesigned pump head to reduce heat generation, a high-performance motor control system and digital processing to ensure stable, repeatable filtration operations.

Key features

• 5.0" colour LCD with tempered glass touch panel for clear status and simple operation.
• Compact integrated process surface for easy cleaning and cleanroom compatibility.
• Digital pulse encoder with stepless speed control and speed memory function (0–310 rpm).
• SOP / Normal / Assisted operation modes; SOP mode stores up to 300 recipes for consistent workflows.
• Three pressure modes: Pressure Alert, Regulation and Normal, with pressure calibration and monitoring.
• Powerful motor with digital current control and four safety protections: over-current, over-voltage, overload and blockage detection.
• Safety hood to prevent glove pinching and a waterproof foot pedal for hands-free control.
• High temperature and maintenance alarms to support laboratory safety and uptime.

Functional highlights

• Easy tube loading and intuitive SOP mode streamline routine sterility testing procedures.
• Real-time pressure monitoring and calibration ensure accurate membrane filtration results.
• Compatible with canisters from other manufacturers for flexible integration into existing workflows.

Applications
Designed for sterility testing of sterile preparations (antibiotics, bacteriostatic formulations), sterile APIs, IV fluids, aqueous injections, sterilized medical instruments, WFI and similar products. Also suitable for microbial limit tests in pharmaceuticals, food and beverage laboratories using membrane filtration.

Technical specifications

• Power supply: 95–260 VAC, 50–60 Hz
• Power consumption: ≤200 W
• Speed range: 0–310 rpm
• Net weight: 19 kg
• Dimensions: 25.2 x 35.2 x 13.0 cm
• SOP recipes: up to 300 groups
• Screen: 5.0" HD colour LCD
• Bottle holder height: 53 cm
• Ambient temperature: 15–35 °C
• Ambient humidity: < 75% (no condensation)
• Timer: 1–999 s
• Material: 316L stainless steel
