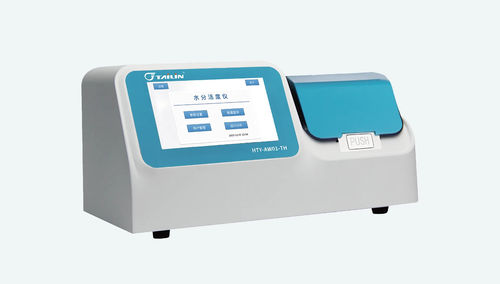

Water activity tester HTY-AW01-TH

laboratoryfor the food industryfor the pharmaceutical industry

Product overview
The HTY-AW01-TH water activity meter determines sample aw using the mirror condensation method with controlled temperature and humidity. Suitable for quality control and R&D in pharmaceuticals, food, cosmetics and environmental testing to assess microbial risk and shelf life.

Key features

• Mirror condensation method: Traceable to SI units and aligned with USP recommended methods (USP 922, USP 1112).
• High accuracy: Resolution 0.0001 aw and high-precision capability (±0.003 aw) with a maximum allowable error ±0.02 aw.
• Active temperature control: 10–50 °C range with ±0.2 °C accuracy for fast and repeatable measurements (typical test time ≤30 min; with active control measurement time can be reduced to ~4–6 min).
• Data management: 3-level user access, audit trail and 21 CFR Part 11 support; long-term storage (>10 years).
• Low operating cost: Inexpensive consumables and minimal sensor maintenance.

Specifications

• Test range: 0–1.000 aw
• Max. allowable error: ±0.02 aw
• High accuracy capability: ±0.003 aw
• Resolution: 0.0001 aw
• Repeatability error: ≤5%
• Temperature control range: 10–50 °C; accuracy ±0.2 °C; sample resolution 0.01 °C
• Environment: 4–50 °C; 10%–85% RH (non-condensing)
• Sample cup capacity: 7 mL
• Input power: 100–240 VAC ±10%, 50/60 Hz; power ≤100 W
• Data storage: >10 years (records aw, temperature, time, date, operator, sensor type)

Compliance

• USP 922 Water Activity
• USP 1112 Application of Water Activity Determination in Non-sterile Drugs
• USP 1241 Water–Solid Interactions in Drug Systems
• 21 CFR Part 11 compliant data handling

Applications
Designed for routine QC and R&D testing of raw materials and finished products across regulated industries.

• Pharmaceuticals
• Food and beverages
• Cosmetics
• Biodegradable materials, soil and compost analysis

Technical details

• Model: HTY-AW01-TH
• Sample cup capacity: 7 mL
• Typical test time: ≤30 min (can be reduced to ~4–6 min with active temperature control)
• Supports audit trail and multi-user access (3 levels)
