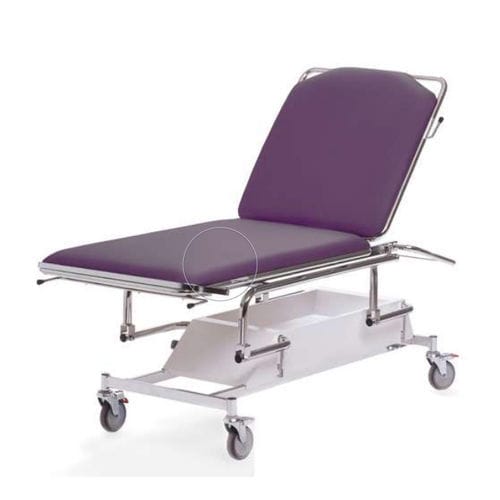

2-sectioned examination table, hydraulic 010-8051
With separately locking castors
The Examination table is designed in
cooperation with hospital professionals, focusing
on functionality, ergonomic design and quality.
Electrically or hydraulically height adjustable,
manul gas spring adjustment of backrest and
Trendelenburg (electric versions available as
option on the Electric models)
All-welded chromium-plated chassis, sturdy
construction with 4 lifting points. This design
makes the table very sturdy.
Paper roll holder and dispenser
Included.
Castors
125 mm, two with lock, one with directional
locking function. Or central locking castors.
White cover
Protects the motor. Its large plain surfaces
makes cleaning easier.
Backrest length: 75 cm
Backrest angle: 71°
Trendelenburg angle: -14°
Weight: 67 kg
Hydraulic pump
(only on the hydraulic models)
Adjusted by foot pedals.
Motor
(only on the electric models)
220-240 V / 24V. Hand control included, foot
control and/or battery backup available as
option.
Pads
70 cm wide as standard. The pads are filled with
4 cm plastic foam. The artificial leather is
available in many different colors. The pads are
protected by a chromed steel tube.
