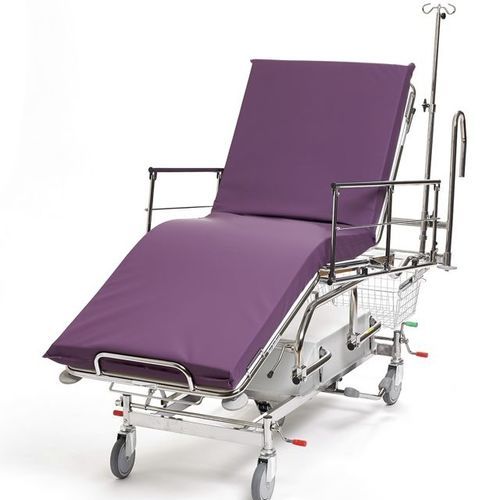

Hydraulically height adjustable.
Developed in consultance with emergency
staff, for a great patient comfort, userfriendliness and ergonimic design.
Chassis
Chromium-plated all-welded steel tubes.
Sturdy construction, four lifting points.
A wide height range (very low, very high)
enables the staff to achieve correct and
ergonomic work posture and helps the
patient to get on and off the trolley.
Top
3-sectioned. Bumper wheels in each corner.
Steering handle behind the backrest.
Variably adjustable by hydraulic pump and a
2-sided foot pedal.
10 cm thick, of which 5 cm is of a preassure
relieving material, very comfortable. Available
in four designs, with or without handles, with
or without a gliding bottom surface.
Central locking 150 mm castors, of which
one is a directional locking castors, to
help achieve a straight transport. If
choosing the available fifth steering wheel
(optional), this replaces the directional
locking castor.
The included basket could be pulled out.
Siderails
Accessories. Foldaway, easy to handle.
Length 110 cm. Total height 37 cm,
height above the pad ca 20 cm.
IV stand
Accessory. Foldaway, height adjustable,
very easy to handle. Mounted onto the
trolley, no loose details.
Protective cover
Protects the hydraulic pump and may
be used for temporary storage.
Its smooth surfaces helps when cleaning.
