Dental implant contra-angle R20L-01C

for dental implantologyelectricnot specified

Product overview

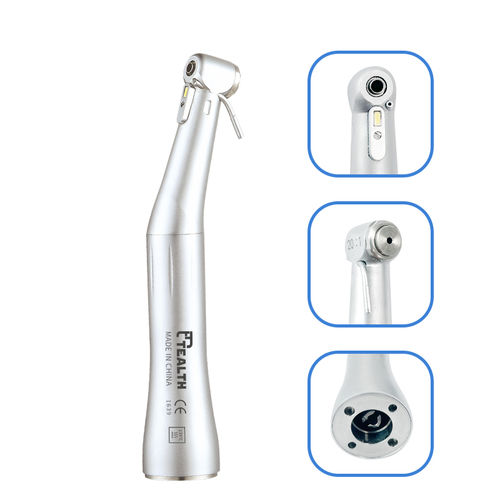

The 20:1 LED Implant Contra-Angle Handpiece 210L is an implant-specific dental contra-angle designed for low-speed, high-torque implant procedures. It integrates self-illuminated LED lighting, a push-button chuck for Φ2.35 mm burs, internal and external irrigation options, and an ergonomic grip suited to clinical practice.

Key features

• 20:1 gear reduction delivering up to 80 N·cm torque for controlled implant placement at 5–2000 r/min.
• Built-in self-illuminated LED for improved visibility in the surgical field.
• Push-button chuck compatible with Φ2.35 mm burs for fast, secure bur changes.
• Internal and external irrigation to ensure cooling and debris removal during drilling.
• Ergonomic comfort grip designed to reduce hand fatigue during extended procedures.

Compatibility & warranty

• Compatible with E-type motors including NSK, Aseptico, W&H, Nouvag Acteon, KAVO.
• Order code: 210L. Brand: TEALTH®.
• Product origin: China. Delivery time: within 3 working days. Supply capacity: 10,000 pcs/year.
• Warranty: 1 year.

Maintenance

• Cleaning: remove the bur after use and brush the handpiece; soak the head in clean water and run for about 15 seconds before autoclaving.
• Removable head: if applicable, remove the head and wash head and body separately with clean water.
• Lubrication: apply E-type oil via the oil nipple and spray 2–3 seconds; if heavily soiled, remove the back cap and spray inside. Lubricate every 30 minutes during continuous operation.
• Sterilization: autoclave before first use and after each treatment. Autoclave 12 minutes at 135°C. Recommended sequence after treatment: remove bur and brush clean, wipe exterior with alcohol solution, lubricate, place in autoclave pouch, autoclave 12 min at 135°C.

Technical specifications

• LED generator: built-in, self-illuminated
• Gear ratio: 20:1
• Rotation speed: 5–2000 r/min
• Chuck type: push-button
• Applicable bur: Φ2.35 mm
• Max torque: 80 N·cm
• Noise: ≤ 70 dB
• Compatibility: E-type motors (NSK, Aseptico, W&H, Nouvag Acteon, KAVO)
• Order code: 210L
• Brand: TEALTH®
• Origin: China
• Delivery time: within 3 working days
• Supply capacity: 10,000 pcs/year
• Warranty: 1 year
