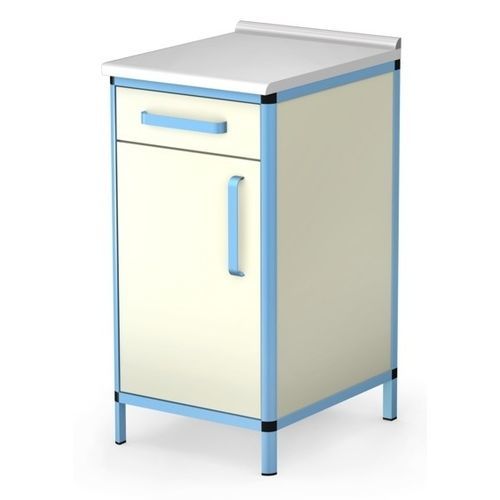

Cabinet with shelf ST series

with drawerwith doorstainless steel

Description

Elements of medical furniture – ALUMED system made of:

• frame made of aluminium profiles and ABS connectors, anodized or powder‑varnished (colour consistent with Tech‑Med RAL palette)
• aluminium profile with a cross section 25 x 25 mm
• filling: chipboard laminated on both sides 18 mm thick
• all edges protected by PVC edging 2 mm thick
• top made of chipboard, type: post forming 28-36 mm thick, high pressure HPL laminated
• leg with a height of 10 cm with levelling
• glazed door – 4 mm safety glass in anodized aluminium frame
• stainless steel sinks

Options

Base made of steel fitted with 100 mm casters.

Models (gallery)

• ST-1143
• ST-1111
• ST-1166
• ST-5132
• ST-6144
• ST-6144/2
• ST-6152
• ST-6164

Total dimensions [mm]

ST-1111, ST-1143, ST-1166: 460 x 550 x 860
ST-6131, ST-6152, ST-6144, ST-6144/2, ST-6164: 1340 x 550 x 860

Technical characteristics / specifications

• System: ALUMED (medical furniture)
• Frame: aluminium profiles with ABS connectors, anodized or powder‑varnished (Tech‑Med RAL palette)
• Aluminium profile cross section: 25 x 25 mm
• Fillings: 18 mm double‑sided laminated chipboard
• Edges: 2 mm PVC edging
• Top: post forming chipboard, 28‑36 mm, high pressure HPL laminate
• Legs: 10 cm height with levelling
• Doors (glazed): 4 mm safety glass in anodized aluminium frame
• Sinks: stainless steel
• Optional base: steel base with 100 mm casters
• Available models and dimensions as listed above
