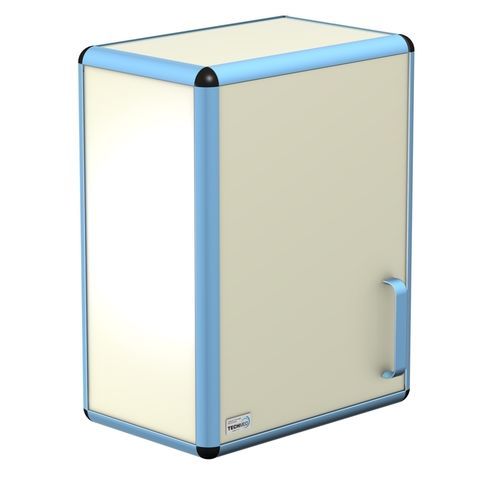

Healthcare facility cabinet SW series

wall-mountedwith doorwith shelf

Description
Elements of medical furniture forming the ALUMED system, designed for clinical and laboratory wall-mounted storage. Main components and finishes are listed below for specification and selection.

Construction details

• Frame made of aluminium profiles with ABS connectors, anodized or powder-varnished (colour consistent with Tech-Med RAL palette)
• Aluminium profile cross section: 25 x 25 mm
• Filling: 18 mm chipboard laminated both sides
• All edges protected by 2 mm PVC edging
• Top: post-forming chipboard 28–36 mm thick, high-pressure HPL laminated
• Leg: 10 cm height with levelling
• Glazed door: 4 mm safety glass in anodized aluminium frame
• Sinks: stainless steel

Total dimensions
[mm]:

• SW-1110, SW-1210: 460 x 300 x 600
• SW-2110, SW-2210: 900 x 300 x 600
• SW-3110, SW-3310, SW-3210, SW-3220: 1340 x 300 x 600

Available types

• SW-1110
• SW-1210
• SW-2110
• SW-2210
• SW-3110
• SW-3310
• SW-3210
• SW-3220

Caractéristiques / spécifications techniques

• System: ALUMED medical furniture
• Frame: aluminium profiles with ABS connectors, anodized or powder-varnished (Tech-Med RAL palette)
• Aluminium profile cross section: 25 x 25 mm
• Filling: 18 mm chipboard laminated both sides
• Edge protection: PVC edging 2 mm thick
• Top: post forming chipboard 28-36 mm thick, HPL high pressure laminated
• Leg height: 10 cm with levelling
• Glazed door: 4 mm safety glass in anodized aluminium frame
• Sinks: stainless steel
• Dimensions (L x D x H in mm): see Total dimensions above
