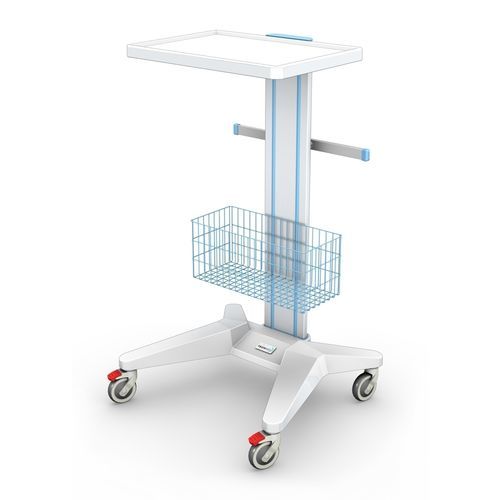

Medical trolley APAR-1

equipmentplasticaluminum

Product description
The APAR-1 is a height-adjustable medical equipment cart designed for clinical and procedural environments. It combines an aluminum support-column frame with steel shelves and drawer, a recessed top to secure instruments, and a steel base with ABS casing on 75 mm casters.

• Frame: powder-varnished aluminum support columns allowing shelf spacing adjustment and mounting of accessories
• Shelves and drawer: powder-varnished steel
• Top: recessed design to prevent equipment sliding
• Decorative elements: powder-varnished, available in RAL palette colours
• Base: steel with ABS casing, fitted with 75 mm casters (two with brakes)

Additional equipment

• power socket strip
• monitor holder
• accessories basket
• medi-rail
• cable arm
• IV pole
• articulated boom
• keyboard shelf
• waste bag holder
• oxygen bottle holder
• retractable side top

Option
Top available in HPL laminated chipboard

Dimensions
Total dimensions [mm]: length × width: 510×480; 510×520; 670×540
Height: 800–1300

Top dimensions [mm]: length × width: 450×320

Drawer dimensions [mm]: length × width × height: 450×320×155

Height adjustment by gas spring: range ±150 mm

Technical specifications

• Model name: APAR-1
• Frame: powder-varnished aluminum support columns
• Shelves and drawers: powder-varnished steel
• Top: recessed design to prevent sliding; optional HPL laminated chipboard
• Decorative elements: powder-varnished, RAL palette colours
• Base: steel with ABS casing
• Casters: 75 mm, two with brakes
• Height adjustment: gas spring, range ±150 mm
• Total dimensions variants (L×W mm): 510×480; 510×520; 670×540
• Height (mm): 800–1300
• Top dimensions (mm): 450×320
• Drawer dimensions (mm): 450×320×155
• Available additional equipment: power socket strip, monitor holder, accessories basket, medi-rail, cable arm, IV pole, articulated boom, keyboard shelf, waste bag holder, oxygen bottle holder, retractable side top
