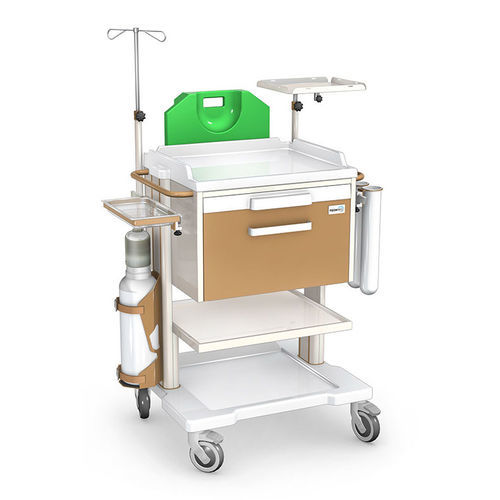

intensive care cart / with CPR board / with IV pole / with drawer
OPTIMUM series R type



  • Applications:

    intensive care

  • Components:

    with CPR board, with IV pole, with drawer


Elements of Treatment cart OPTIMUM series R Type (resuscitation trolleys) made
cabinet, drawer steel coated with powder varnish
frame made of aluminium profile, powder-varnished in white
top made of ABS plastic, surrounded by three bands
worktop made of ABS plastic or steel coated with powder varnish, retractable
base made of steel with ABS plastic cover, the crease, with protection against sliding off the equipment and with buffers integrated with base
decorative elements, drawer fronts, handles powder coated with RAL colour – pattern TECH-MED

Option:: worktop made of stainless steel grade 0H18N9 or of steel powder coated.;

Additional equipment: titling containers, shelves, basket for accessories, waste containers, tools containers, gloves containers, containers for used needles, catheters baskets, waste bin, hanger for drip, handle for oxygen cylinders, power strip

Dimensions of the table without additional equipment:
700 x 500 x 1000 mm [L x S x H]

Dimensions of the cabinet: 600 x 500 mm [L x S]

Height from the ground to the top:1000 mm

Dimension of shelves: 600 x 500 mm
