Cable holder cable management system G-01

aluminumstainless steel

Description

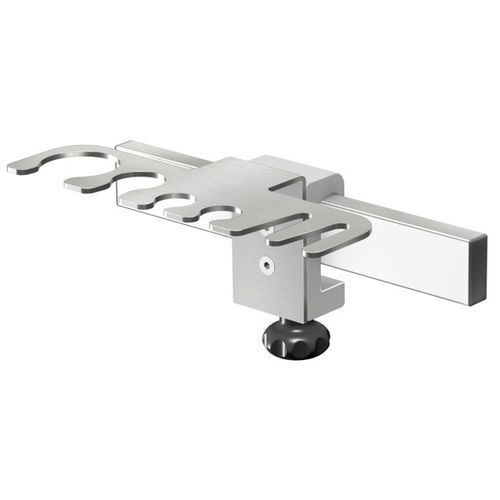

Comb-style cable holder for mounting on instrument rails, intended to organise and secure cables, pipes or hoses.

CONSISTS OF:

• Comb handle made of 0H18N9 stainless steel; weight: 0.16 kg; maximum load: 1 kg
• Rail holders USU-01 made of anodized aluminium for mounting on instrument rails; dimensions: 54×35 mm (H×W); binding screw: M6x25 mm

Dimensions
Suitable for pipes or cables with diameters from 6 to 25 mm.

Material standard
(*) 0H18N9 is equivalent to DIN: X5CrNi 18 10, EN: 1.4301

Technical specifications

• Product type: Comb-form cable holder for rail mounting
• Model: G-01
• Comb material: 0H18N9 stainless steel (DIN: X5CrNi 18 10 / EN: 1.4301)
• Comb weight: 0.16 kg
• Maximum load: 1 kg
• Rail holder type: USU-01, anodized aluminium
• Rail holder dimensions: 54×35 mm (H×W)
• Binding screw: M6x25 mm
• Suitable pipe/cable diameter: 6–25 mm
