Cable holder cable management system TR-01

aluminum

Description

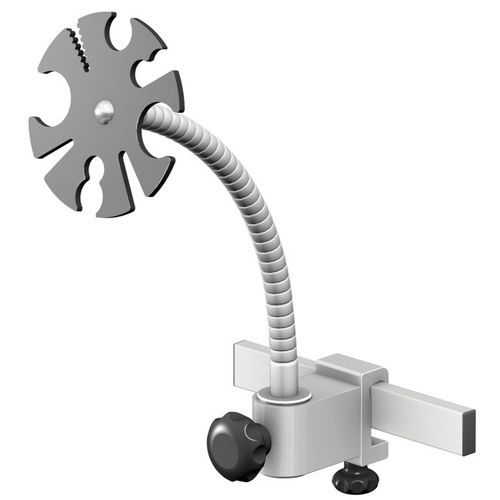

Handle for cables in the form of "DISC/SHIELD" on flexible arm (gooseneck) for mounting on the instrumental rail.

Consists of

• shield handle made of black plastic
• flexible arm made of chromium-plated tube coated white varnish
• rail handle of anodized aluminium to mount on the instrumental rail
• block knob of black plastic with screw

Dimensions
adapted for tubes (drains) or cables of 6-25 mm diameter, length of flexible arm 200 mm

Caractéristiques / spécifications techniques

• Product type: cable holder / handle
• Model: TR-01
• Mounting: for instrumental rail (rail handle of anodized aluminium)
• Handle material: black plastic
• Flexible arm: chromium-plated tube coated with white varnish (gooseneck)
• Block knob: black plastic with screw
• Suitable cable/tube diameter: 6-25 mm
• Flexible arm length: 200 mm
