Shielded door PSF-CCM, PSH1-CB

for cyclotron facilitiesswing

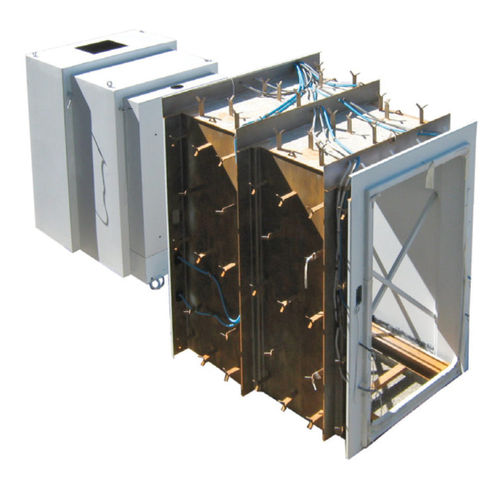

The PSF-CCM is a shielded door for bunkers with non-shieleded cyclotrons. It is a “plug-door” type, which enters the bunker wall in order to re-create the shielding in the opening area of the door. It is as thick as the bunker wall and it is filled with the same concrete type. The PSH1-CB is a 30 mm Pb shielded hinged door for bunkers with self-shielded cyclotrons. The door is equipped with an inflatable seal that assures the air tightness of the cyclotron vault.
