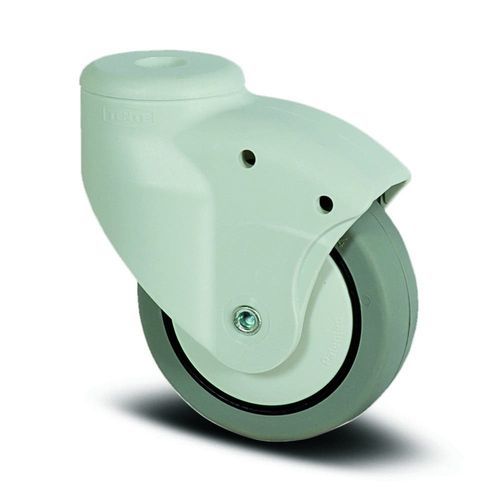

Medical trolley wheel Mono

for hospital bedpolyamiderubber

Product description
The Mono swivel castor 5020PJH080L51-10 RAL9006 features a blind hole for B10 fitting for secure mounting. The housing is made of polyamide and the swivel is driven by a stem-type swivel bearing. The wheel has a polypropylene body with a thermoplastic rubber (TPR) non-marking tread (87 Shore A) for good grip and floor protection. The caster uses a plain bearing for rotation and requires minimal maintenance. Wheel diameter is 3.15 in (80 mm) with an overall height of 4.09 in (104 mm). Dynamic load capacity is 154.32 lb (≈70 kg) at speeds up to ~1.86 mph (~3 km/h); static load capacity is 308.65 lb (≈140 kg). Suitable for bedside tables, media furniture, nursing and retirement homes, and nursing carts.

Advantages

• Non-hazardous materials
• Tested quality
• Colour matching available

Key features

• Wheel diameter: 3.15 in (80 mm)
• Overall height: 4.09 in (104 mm)
• Dynamic load capacity (at ~3 km/h): 154.32 lb (≈70 kg)
• Static load capacity: 308.65 lb (≈140 kg)
• Wheel body material: Polypropylene
• Tread material: Thermoplastic rubber (TPR), non-marking, 87 Shore A
• Bearing: Plain bearing
• Threadguard: With threadguard
• Swivel bearing: Stem, swiveling

Technical specifications

• Article Number: 5020PJH080L51-10 RAL9006
• EAN: 4031582308402
• Series / Product name: Mono
• Type: Swivel castor
• Diameter: 3.15 in (80 mm)
• Overall height: 4.09 in (104 mm)
• Tread width: 0.94 in (24 mm)
• Hardness of tread: 87 Shore A
• Body material (wheel): Polypropylene
• Tread material: Thermoplastic rubber (TPR)
• Bearing: Plain bearing
• Threadguards: With threadguard
• Load capacity at 3 km/h (dynamic): 154.32 lb (≈70 kg)
• Load capacity static: 308.65 lb (≈140 kg)
• Overall weight: 0.32 lb (≈145 g)
• Temperature range (Minimum): 14 °F (≈ -10 °C)
• Temperature range (Maximum): 104 °F (≈ 40 °C)
• Fitting type: Blind hole for B10 fitting
• Bolt hole diameter: 0.39 in (≈9.9 mm)
• Housing color: White aluminum (RAL9006)
• Fork shape: Closed
• Housing material: Polyamide
• Swivel bearing description: Stem, swiveling
• Swivel interference: 5.83 in (148 mm)
• Offset: 1.34 in (34 mm)
• Swivel radius: 2.91 in (74 mm)
• Standard: EN12528 - Furniture Castors
• Suitable applications: bedside tables, media furniture, nursing and retirement homes, nursing carts
