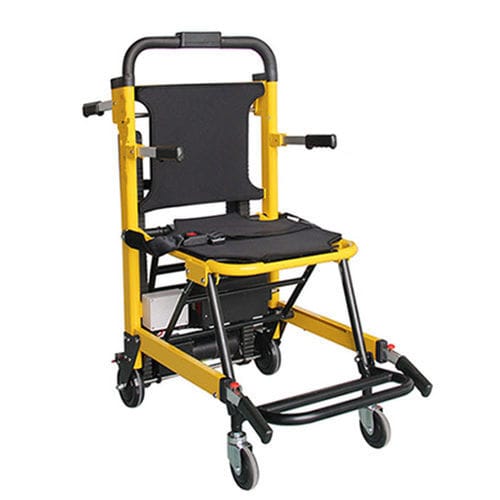

Stair-climbing evacuation chair EM 001

indooroutdoorfolding

EM001 is a motorized chair designed to facilitate the handling of patients on stairs. It allows to operate without effort for the operator and in the maximum comfort and safety for the assisted. EM001 is equipped with two pairs of handles to ensure the best service in compliance with safety regulations. The motor facilitates handling on the stairs. The aluminium alloy structure is foldable, easy to handle and can therefore be easily positioned inside transportation vehicles. Product dimensions (WxDxH) 123x55x100 / 160 cm. Product dimensions folded (WxDxH) 107x55x31 cm. Packaging size 111x58x33 cm. Maximum load capacity 200 kg. NET WEIGHT 30 Kg. GROSS WEIGHT 45 kg Height adjustment margin 103 to 158 cm. 3 height adjustment positions Overall depth 104 cm. Overall width 46 cm. Seat dimensions 40×50 H50 cm from the ground Footrest dimensions 38×20 H18 cm. Motor output current 120 W Motor output voltage 20-29.4 V Variable motor voltage 110-240V Motor current 13.9 A Battery voltage 24 V Estimated life 3-5 years Speed on the stairs 1.7 seconds on a step Track angle At the rear part the track can be adjusted in three positions to suit different levels.
