Type A2 microbiological safety cabinet 1300 series

laboratoryfloor-standingNSF/ANSI 49

Product overview:

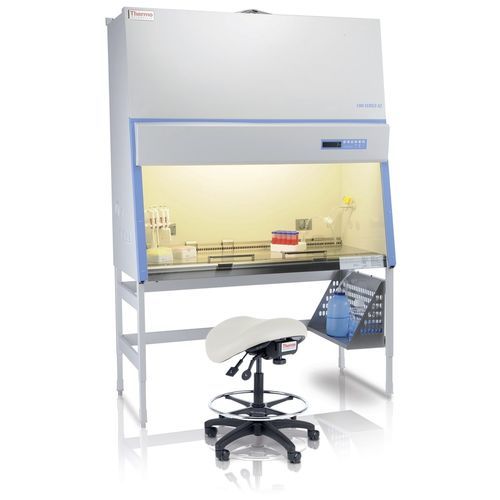

Order-ready Thermo Scientific™ Series 1300 Class II, Type A2 biological safety cabinet packages for routine laboratory applications. Each package includes the cabinet, a manually height-adjustable stand, factory-installed UV light and one pair of armrests. The Series 1300 integrates proprietary airflow design, ergonomic features and energy-saving technologies to provide user protection, a comfortable working environment and reduced operating costs.

Benefits:

• Lower total cost of ownership through an energy-efficient design
• Operating cost reductions up to 75% compared with traditional AC-blower biological safety cabinets
• Improved user comfort and safe handling due to a sloped front, bright work surface and low noise level
• Enhanced protection via proprietary SmartFlow™ airflow design with digital airflow verification
• Efficient interior organization using SmartPort and a two-sided negative-pressure wall

Safety features:

• Designed to meet NSF/ANSI™ Standard 49
• Real-time airflow settings ensure consistent face velocities
• Pressure-sensor filter monitoring measures total airflow in the work zone
• Proprietary SmartClean front-sash design simplifies cleaning and supports a safe workspace
• SmartFlow display adapts airflow to changing filter resistance
• SmartFlow provides a visual indication of the cabinet's compensation capability to maintain user protection

Other options:

• Available widths: 91.4, 122, 152.4 or 183 cm (3, 4, 5 or 6 ft)
• Available sash openings: 20.3 or 25.4 cm (8 or 10 in)
• Interior options: SmartCoat or stainless-steel interior
• Package configurations easily ordered with common accessories (manual height-adjustable stand, UV light and armrest)
• Stands available in manual or electric height adjustment; Ergolign chair available

Available configurations (Catalog number | Chamber material | Exterior width (metric) | Sash opening (metric)):
Catalog number | Chamber material | Exterior width (metric) | Sash opening (metric)
1321 | SmartCoat | 100 cm | 25.4 cm
1335 | Stainless | 130 cm | 20.3 cm
1353 | Stainless | 160 cm | 20.3 cm
1369 | SmartCoat | 160 cm | 25.4 cm
1371 | Stainless | 160 cm | 25.4 cm
1351 | SmartCoat | 160 cm | 20.3 cm

Characteristics / Technical specifications:

• Current: 8 A to 10 A
• Description: 25.4 cm sash
• Exterior dimensions (L × W × H): 31.5 x 39.4 x 61.8 in (80 x 100 x 156.8 cm)
• Electrical requirements: 120 V, 50/60 Hz
• Filter efficiency: 99.995% MPPS
• Filter type: H14 HEPA EN 1822, 99.995% MPPS
• Frequency: 50/60 Hz
• Exterior height (imperial): 61.8 in
• Max sash opening (imperial): 21 in
• Exterior height (metric): 156.8 cm
• Max sash opening (metric): 53.5 cm
• Exterior length (imperial): 31.5 in
• Exterior length (metric): 80 cm
• Load capacity (imperial): 110 lb
• Load capacity (metric): 50 kg
• Plug type: NEMA 5-15
• Connections: 1 × each side panel
• Sash opening (imperial): 10 in
• Maintenance brackets: 6 (3 on each side)
• Exterior width (imperial): 39.4 in
• Interior width (imperial): 35.4 in
• Exterior width (metric): 100 cm
• Interior width (metric): 900 mm
• Certifications / Compliance: NSF/ANSI 49, UL, CE
• Chamber material: SmartCoat
• Model: 1300 Series
• Noise level: 63 dBA
• Product type: Class II, Type A2 Bio Safety Cabinet
• Sash opening (metric): 25.4 cm
• Voltage: 120 V
• Exhaust volume (metric): 15 L
• Unit size: Each
