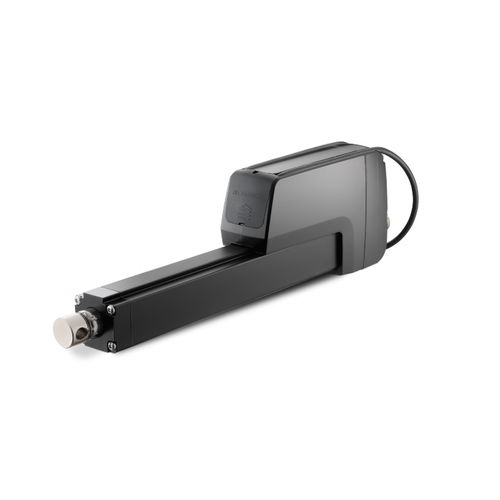

Linear actuator HD12B017-0150SYN2MMSD

linear actuator
linear actuator
linear actuator
Add to favorites
Compare this product


Other characteristics
Load capacity

1,700 N


Max.: 71.1 mm/s

Min.: 57.9 mm/s


Actuator, Electrak HD, 12 Vdc, Dynamic Load: ball screw, 1.7 kN (382 lbs), Max Stroke Length: 150 mm, Control: Synchronous Control1.5 m long cables with flying leads Electrak® HD – Superior Performance Linear Actuator Higher Power, Longer Stroke, On-board Controls. Available with optional J1939 CAN bus/CANOpen and Unmatched Environmental Protection Unrivaled Environmental Protection. IP69K (static), IP67 (static) and IP66 (dynamic) ratings prove Electrak HD can withstand the harshest environments. Salt spray tested for 200 hours. RoHS and REACH (EU) certified. CE compliant. Integrated manual override. Standard anti-rotation actuation. Integrated thermal overload protection. 25% Duty Cycle @ 25 degrees C Anti-Rotation - Yes Brake - Yes Cable Length - 1,500.000 mm / 59.055 in Certifications - CE Special Connector - Flying Leads End Play, Max - 1.200 mm / 0.047 in IP Rating, Dynamic - 66 IP Rating, Static - 66, 67, 69K Manual Override - Yes Material - E-coated Zinc alloy, hard anodized Aluminum, Stainless Steel Nominal Stroke - 150.00 mm / 5.91 in Protection, End of Stroke - Potentiometer output limits Protection, Mid Stroke - Electronic Load Monitoring Screw Type - Ball Temperature Max - 70 °C / 158 °F Temperature Min - -40 °C / -40 °F Temperature Monitoring - Yes Voltage - 12 Vdc Voltage Tolerance - 9-16 VDC Maximum Current Draw - 18.0 amp Weight - 6.700 kg / 14.771 lbs Integrated Motor Control - Yes Electronic Load Monitoring - Yes Control - Low Level Switching Feedback - None Serialized - No Smart Actuation - No Stroke Tolerance - 1.200 mm / 0.047 in Contains Liquids - No Returnable - No
