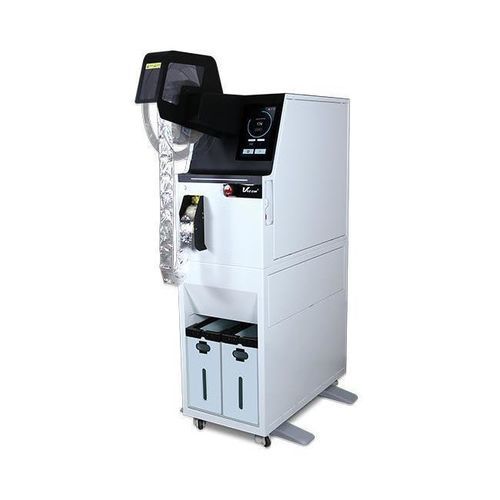

Optical inspection system VIZEN EX

automaticautomatedPC-controllable

Overview
Automatic and precise optical inspection system for pouch-packed medicines. VIZEN EX uses an AI-enhanced vision suite to validate large volumes of pouches with millimetric accuracy, removing human error from MDS review and producing auditable evidences for each validated unit.

Key benefits

• High-precision optical inspection: VISION camera analyses quantity, shape and size of medicines to detect discrepancies.
• High throughput: Validates up to 280 pouches per minute while generating image and text evidence for each pouch.
• Compact multifunctional design: Combines inspection and optional automatic winding/cutting in a space-efficient footprint.
• Full traceability: Automated recording of inspection results in image and text formats for audit trails and digital historical control.
• Multi-format compatibility: Automatic recognition and inspection of variable pouch dimensions without technical interruption.
• Optional automated winding and cutting: Organises inspected pouch strips by intelligent order-based labelling with optional reel winding and cutting.
• Integration ready: High-fidelity image synchronization for remote visual validation when integrated with the Savioo ecosystem (Savioo Care required).
• Intuitive operation: Touchscreen monitor for application control, intelligent notifications and real-time alerts.

Functional description
Hybrid high-performance optical inspection system using multiple latest-generation cameras to analyse tablets and pouches, detect quantity/shape/size errors and generate auditable image/text evidence. The inspection module can be coupled with an optional winding/cutting module to manage inspected pouch strips and enable automatic reel handling.

Components (highlighted)

• Touch monitor: Central control screen for system applications.
• Inspection window: Transparent cover for visual supervision of validation progress.
• Switch unit: Central panel with main power switch, PC start-up and USB ports.
• Feeder: Entry zone where pouch strips are introduced toward the inspection area.
• D-Rolly system: Motorised spindle for reel installation to manage supply and storage of pouch strips.
• Emergency button: Immediate-stop safety control interrupting operations in critical situations.
• Collection trays: Lower compartments where pouch strips are sorted and collected after inspection based on detection results.

Operational highlights

• Analyses tablets and pouch content using three latest-generation cameras to detect discrepancies in quantity, shape and size.
• Precision optical inspection (VISION camera) validates quantity, shape and size of medicines.
• Validation speed up to 280 pouches per minute.
• Produces digital historical control and stores results as images and text for auditability.
• Automatically recognises multiple pouch formats without manual adjustments.
• Optional automatic winding and cutting to organise inspected pouch strips and prepare reels.
• Supports remote visual validation via integration with external ecosystems (Savioo) for clinical or care settings.

Technical specifications

• Model family: VIZEN EX
• Inspection cameras: 3 latest-generation cameras (including high-precision VISION camera)
• Validation speed: up to 280 pouches per minute
• Inspection capabilities: optical analysis of quantity, shape and size of medicines
• Traceability: automated storage of results in image and text format (digital historical control)
• Architecture: compact hybrid machine combining inspection and optional winding/cutting
• Multi-format compatibility: automatic recognition and inspection of variable pouch dimensions
• Integration: high-fidelity image synchronization for remote validation (integration with Savioo ecosystem; Savioo Care required)
• User interface: intuitive touchscreen monitor with real-time notifications
• Mechanical features: feeder entry zone, D-Rolly motorised spindle for reel handling, collection trays for sorted pouch strips
• Safety: emergency stop button and central switch unit (PC start-up, USB ports)
