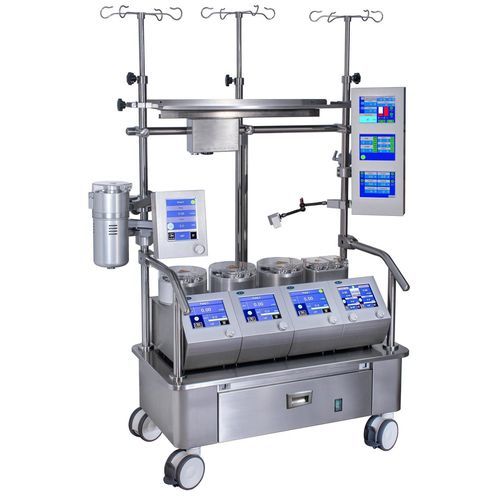

Heart-lung machine H5

Add to favorites

Compare this product

Description

Product name
WEL-H5

Product overview

The system uses a PLC programmable control system to improve reliability and stability.
Full touch-screen human–machine interface for intuitive operation and monitoring.
Comprehensive monitoring functions including pressure, temperature, blood level and air-bubble detection, with myocardial perfusion protection control.
Customizable pump-station combinations according to clinical requirements, with one-touch main-pump switching.

Main features

PLC-based control system for enhanced machine reliability and stable performance.
Built-in emergency power supply provides seamless switching to DC power in case of mains interruption or power fault.
Blood pump motor is a maintenance-free direct-drive motor.
Pump tension adjustment is stepless and features a self-locking mechanism for easy use by perfusionists.
Supports externally mounted hanging pumps for clinical expansion.
Touch-screen monitor provides monitoring and protection for pressure, temperature, blood level, air bubbles and myocardial perfusion.

Configuration and expansion

Configurable pump-station layouts to meet various clinical scenarios; supports multiple pump combinations and expansion options.

Characteristics / technical specifications

Control system: PLC programmable control
Interface: Full touch-screen HMI
Monitoring: Pressure, temperature, blood level, air-bubble detection and myocardial perfusion protection control
Emergency power: Built-in emergency power supply for seamless switch to DC on mains failure
Blood pump motor: Maintenance-free direct-drive motor
Pump tension adjustment: Stepless adjustment with self-lock
Pump head: Rotatable design
Expansion: Supports externally mounted hanging pumps and customizable pump-station combinations
Operating voltage: 220V, 50Hz
Power: 750W
