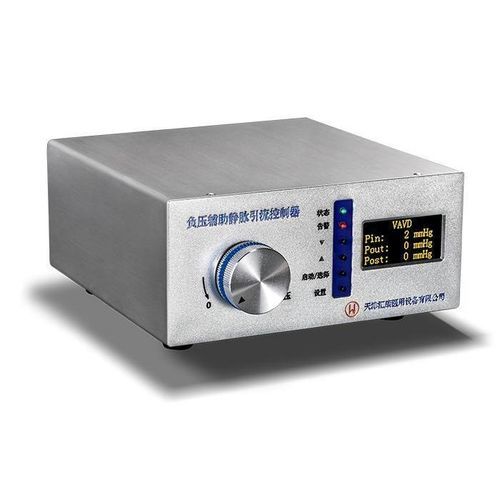

Pressure control unit WEL-VC001

medical

Product nameNegative-pressure-assisted venous drainage controller WEL-VC001Intended useUsed to regulate and control the negative pressure inside a closed venous reservoir during extracorporeal circulation negative-pressure-assisted venous drainage.Product featuresAdjusts and simultaneously monitors negative pressure in the venous reservoir of membrane oxygenatorsMaximum output negative pressure: -60 mmHgAlarm/setting range configurable anywhere between -60 mmHg and -20 mmHgOperating conditionsPower: AC 220V ±10%, 50Hz ±2%; Power consumption: 30 VAAmbient temperature: 2°C – 40°CRelative humidity: ≤ 80%Atmospheric pressure: 86 kPa – 106 kPaFeatures / Technical specificationsModel: WEL-VC001Function: Negative pressure regulation and real-time monitoring (venous reservoir for membrane oxygenator)Maximum output negative pressure: -60 mmHgAdjustable alarm/setting range: -60 mmHg to -20 mmHgPower requirements: AC 220V ±10%, 50Hz ±2%Power consumption: 30 VAOperating temperature range: 2°C – 40°CRelative humidity: ≤ 80%Atmospheric pressure range: 86 kPa – 106 kPa
