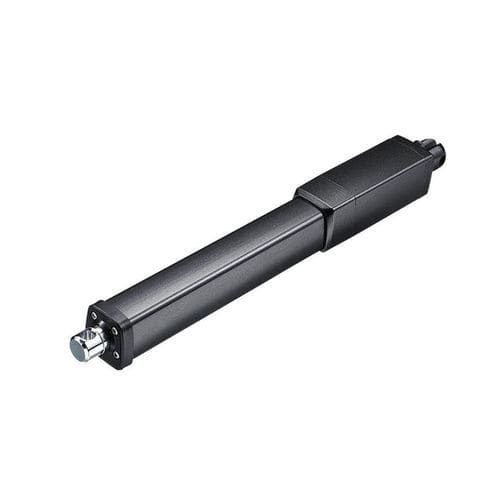

Linear actuator JP4 electricmedicalpiston
Add to favorites
Compare this product
Characteristics
- Movement
- linear
- Type
- electric
- Applications
- medical
- Other characteristics
- piston
- Load capacity
3,000 N, 4,500 N
- Speed
2.5 mm/s, 27.5 mm/s
Description
TiMOTION’s JP4 series inline linear actuator is most similar to the JP3, but was designed for industrial applications that require higher load and speed. Its IP69K protection ensures it will withstand high temperature, high pressure water jets, and the ingress of dust and other solid contaminants. For synchronization and position feedback, the JP4 can be equipped with Hall sensors.
Retracted length: ≥ Stroke + 289mm
IP rating: IP69K
Certificate: UL73
Stroke: 20~1000mm
Output signals: Hall sensors
Voltage: 12/24V DC; 12/24V DC (PTC)
Color: Black, grey
Operational temperature range: -5°C~+65°C
Operational temperature range at full performance: +5°C~+45°C
Storage temperature range: -40°C~+70°C
