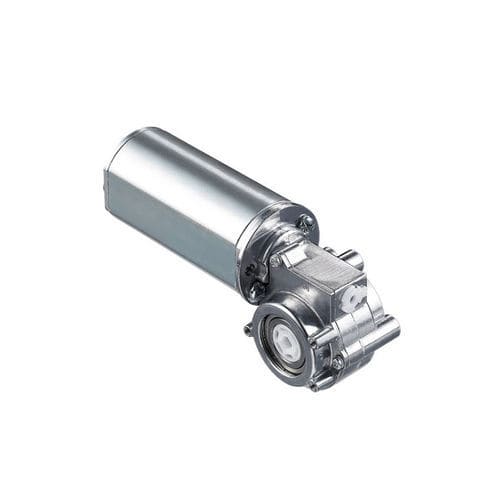

Medical industry gear-motor TGM3

DC

The TGM3 series is TiMOTION's compact size gear motor. It was designed primarily for ergonomic applications like height adjustable workstations and tables, but can be used in many other applications. This economical product allows for fast, smooth and quiet adjustment of built-in spindles through the use of external limit switches. Shafting allows for the mechanical synchronization of dual spindles. Max. rated torque: 4.6Nm Output signals: Hall sensors Voltage: 24V DC Operational temperature range at full performance: +5°C~+45°C Hexagon hole for the shaft by 6mm diameter Low noise
