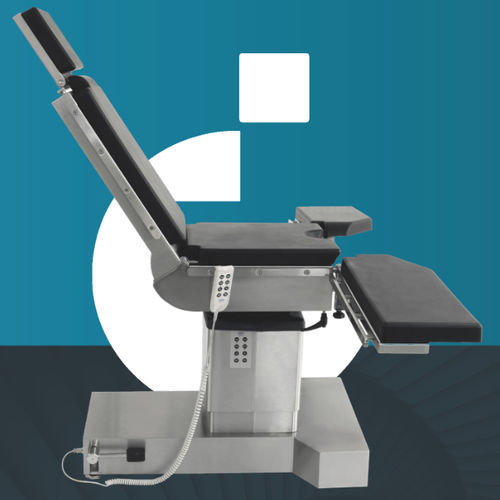

Universal operating table TORO 9000 / U

electricmechanicaltilting

Short description
The TORO 9000 / U is an electro-mechanical multi-purpose operating table designed for a wide range of surgical procedures. It features adjustable head, back and leg sections, lateral tilt and Trendelenburg control, detachable sections and an optional sliding function. Battery backup provides limited autonomy for transfers and positioning.

Key features

• Model: TORO 9000 / U
• Type: Electro-mechanical multi-purpose operating table
• Adjustable sections: head, back, sitting base, bilateral leg sections (piston), detachable where specified
• Movements: head 55° up / 90° down (manual, detachable); back 70° up / -30° down (control); leg sections 20° up / 90° down, 90° lateral slide, detachable
• Lateral tilt (control): 20° right / 20° left
• Trendelenburg / Reverse Trendelenburg (control): 25°
• Optional slide (control): 250 mm
• Donor operation range (control): 140° (with apparatus)
• Carrying capacity: 200 kg

Dimensions

• Tabletop length: 600 mm x 2150 mm
• Minimum height: 780 mm x 1080 mm
• Maximum height: 820 mm x 1120 mm
• Head section: 225 mm x 355 mm
• Back section: 530 mm x 625 mm
• Sitting base section: 530 mm x 530 mm
• Leg section (each, piston): 255 mm x 710 mm

Power and battery

• Power input: 230 V, 50 Hz
• Battery charge voltage: 24 V DC
• Remote control voltage: 5 V DC
• Motor specification: 220 V AC / 24 V DC 10 A
• Battery: Dry-type, maintenance-free; capacity 7 Ah / 12 V DC; autonomy ~45 minutes

Clinical use and options
Suitable for multiple surgical specialties. Detachable sections and optional slide allow configuration for specific procedures. Battery backup supports patient positioning and short transfers.
