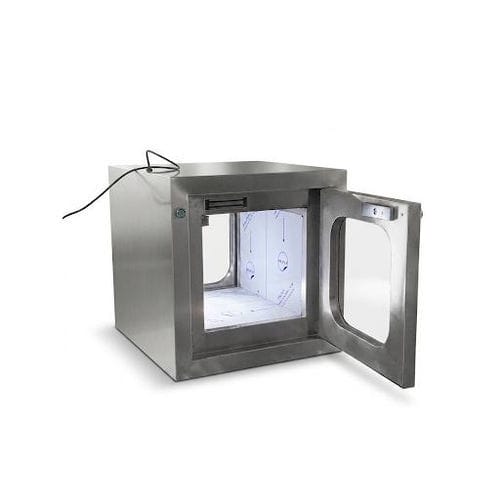

Cleanroom pass box TDPB 2100

decontaminationwarming

Overview
Pass box TDPB 2100 for controlled transfer of materials between sterile environments in hospitals, laboratories and pharmaceutical production. Constructed in 304 grade stainless steel with glass doors and a rounded inner chamber for cleaning and contamination control.

Applications

• Hospitals and clinical laboratories
• Pharmaceutical cleanrooms and production areas
• Research and biotechnology facilities
• Any sterile production or packaging process requiring material transfer

Key features

• 304 grade stainless steel construction
• Glass doors for full interior visibility
• UV lamp system active until doors are opened
• Sealed door system to prevent air passage
• Rounded, easy-to-clean inner chamber to reduce bacterial retention
• Electromagnetic interlock preventing simultaneous opening of both doors
• Warning system for unintended door opening/closing
• Configurable to keep locks open during power outage
• Flexible production for different designs and dimensions
• Standard dimensions (WxLxH): 600 x 600 x 600 mm

Technical specifications

• Material: 304 grade stainless steel
• Application: Transfer in sterile environments (pass box)
• Doors: Glass doors for visibility
• UV system: UV lamp active until door opening
• Sealing: Door sealing to prevent air passage
• Inner chamber: Rounded, easy-to-clean design
• Locks: Electromagnetic interlock to prevent simultaneous door opening
• Safety: Warning system for unwanted door operations
• Power outage option: Locks can be set to remain open during power loss
• Dimensions (WxLxH): 600 x 600 x 600 mm

Options & customization

• Custom sizes and configurations on request
• Optional UV timer and interlock configurations
• Different glazing and handle options

Installation & maintenance

• Rounded inner chamber facilitates cleaning and reduces contamination risk
• Mounting and electrical connection to be performed by qualified technicians
• Replaceable UV lamp and seals for routine maintenance
