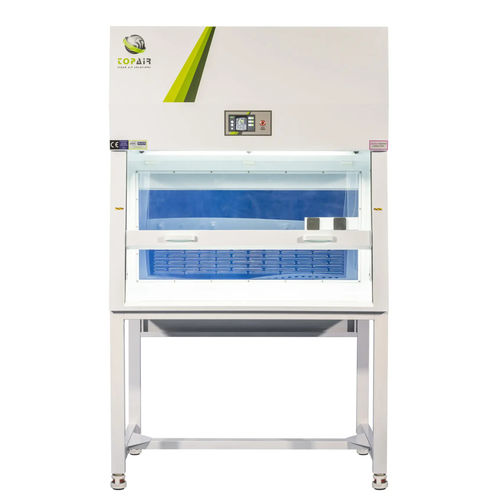

Teaching fume hood CF-060-PP

containmentlaboratoryductless

Product overview
TopAir Systems’ Educational ductless fume hood with a clear back panel (polycarbonate) and 360° glass configuration provides enhanced visibility for demonstrations while maintaining filtration and containment suitable for acids and aggressive chemicals.

Structure

• Based on the standard ductless CF unit configuration.
• Includes a clear rear panel manufactured from polycarbonate for educational visibility.

Models (selected table information)
CF-060-PP — Outer Dimensions: 600 x 750 x 1223 mm (23.62 x 29.5 x 48”)
CF-090-PP — Outer Dimensions: 900 x 750 x 1223 mm (35.4 x 29.5 x 48”)
CF-120-PP — Outer Dimensions: 1200 x 750 x 1223 mm (47.24 x 29.5 x 48”)
CF-150-PP — Outer Dimensions: 1500 x 750 x 1223 mm (59 x 29.5 x 48”)
CF-180-PP — Outer Dimensions: 1800 x 750 x 1223 mm (70.8 x 29.5 x 48”)

Dimensions for XL model (add -XL to P/N for XL models)
CF-060-PP XL — 600 x 750 x 1500 mm (23.62 x 29.5 x 59”)
CF-090-PP XL — 900 x 750 x 1500 mm (35.4 x 29.5 x 59”)
CF-120-PP XL — 1200 x 750 x 1500 mm (47.24 x 29.5 x 59”)
CF-150-PP XL — 1500 x 750 x 1500 mm (59 x 29.5 x 59”)
CF-180-PP XL — 1800 x 750 x 1500 mm (70.8 x 29.5 x 59”)

Workspace (W x D x H)
CF-060-PP: 585 x 590 x 695 mm (23 x 23.2 x 27.3”)
CF-090-PP: 885 x 590 x 695 mm (34.8 x 23.2 x 27.3”)
CF-120-PP: 1185 x 590 x 695 mm (46.6 x 23.2 x 27.3”)
CF-150-PP: 1485 x 590 x 695 mm (58.4 x 23.2 x 27.3”)
CF-180-PP: 1785 x 590 x 695 mm (70.2 x 23.2 x 27.3”)

Front sash
Maximum opening: 495 mm / 19.5"

Test standard
Comply: EN-14175 / CE / ASHRAE 110-1995

Air velocity
0.5 ± 0.1 m/s (100 ± 20 fpm)

Hood material
8 mm welded white polypropylene structure with built-in sealed polypropylene worktop

Noise
<52 dB (model dependent; measured 20 cm from worktable, 1.2 m above ground)

Power supply
110/220 V, 50/60 Hz, single phase

Illumination
800 lux, eco-friendly LED lighting

Available filters
Pre-filter & carbon filters for solvents, acids, bases, formaldehyde, multi-gas (blend of materials) / HEPA option

Optional accessories

• XL model with 2 internal filters
• Metal stand with casters
• Polypropylene base cabinet
• UV light
• Gas taps
• Water taps
• Polypropylene cup sink
• Polypropylene sinks
• Electrical outlets
• Clear back for educational purposes

Accessories (models & descriptions)

• CF-GTAP — Gas tap
• CF-PP-SINK — Polypropylene cup sink
• CF-SINK-3040 — Polypropylene sink 30 x 40
• CF-size-BS — Polypropylene base cabinet
• CF-size-ST — Metal stand
• CF-SOCKET — Power outlet installed
• CF-UV — UV Light
• CF-WTAP — Water tap

Technical specifications

• Product name: Clear Back for Ductless Fume Hood (Educational)
• Brand: TopAir Systems
• Clear back panel material: Polycarbonate
• 360° glass configuration for educational visibility
• Test standards: EN-14175, CE, ASHRAE 110-1995 compliance
• Airflow target: 0.5 ± 0.1 m/s (100 ± 20 fpm)
• Hood and worktop: welded white polypropylene (8 mm)
• Illumination: 800 lux LED
• Power: 110/220 V, 50/60 Hz, single phase
• Available filtration: pre-filters, carbon filters (solvents/acids/bases/formaldehyde/multi-gas), HEPA option
• Noise (measured): <52 dB for smaller models (model dependent)
• Models available: CF-060-PP, CF-090-PP, CF-120-PP, CF-150-PP, CF-180-PP (XL variants available)
• Workspace and outer dimensions provided per model (see Models section)
