Cerebral vascular model SJ001D

nerveintracranialcircle of Willis

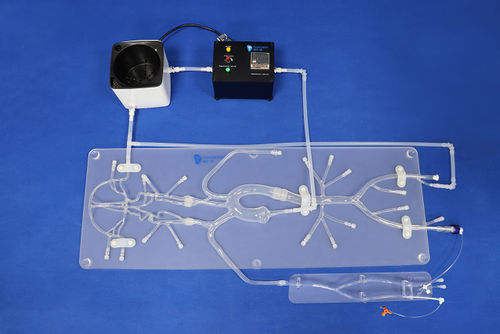

This model extends from the femoral artery to A2 segment of anterior cerebral artery to M2 segment of the middle cerebral artery. It contains a complete circle of Willis, 5 different sizes of intracranial aneurysm, the arch section is arch Type I, but it can be customized to Type II, Type III, or variant arches upon request. the blood vessels models is fixed onto acrylic plate.The intracranial,aorta and abdomen part of the model can be connected and disassembled by our custom connectors,the above three parts can be customized and replaced according to your requirements. The model is based on human CT data, reconstructed and optimized to accurately replicate the spatial structure and inner diameter of human blood vessels at a 1:1 scale. It is 3D printed and intended for testing, training, and demonstration purposes. II.Application 2.1 Suitable for simulating aneurysm tamponade and cerebral angiography. 2.2 Suitable for development, testing , verification & demonstration of some relevant device such as catheter, stent, balloon, guiding wire, microcatheter, etc. 2.3 Suitable for various neural interventional procedures training, device's marketing, training and education. 2.4 Suitable for quantitative analysis to blood perfusion(CTA,DSA,MRA,OOT,PIV and doppler sonography). III.Custom Service Options 3.1 The number,size and location of intracranial aneurysm can be customized based on your requirements. 3.2 Stenotic lesion, arteriovenous fistulas, embolism or other common lesions can be added to intracranial part. 3.3 Radial arteries on both sides intervention can be achieved.Aneurysms, stenosis and other lesions can be added onto carotid artery.
