Intracranial vascular model SJ001D-C
femoral arterycirculus arteriosus Willisiiinternal carotid artery

Intracranial vascular model - SJ001D-C - Trando 3D Medical Technology - femoral artery / circulus arteriosus Willisii / internal carotid artery
Intracranial vascular model - SJ001D-C - Trando 3D Medical Technology - femoral artery / circulus arteriosus Willisii / internal carotid artery
Intracranial vascular model - SJ001D-C - Trando 3D Medical Technology - femoral artery / circulus arteriosus Willisii / internal carotid artery - image - 2
Intracranial vascular model - SJ001D-C - Trando 3D Medical Technology - femoral artery / circulus arteriosus Willisii / internal carotid artery - image - 3
Intracranial vascular model - SJ001D-C - Trando 3D Medical Technology - femoral artery / circulus arteriosus Willisii / internal carotid artery - image - 4
Intracranial vascular model - SJ001D-C - Trando 3D Medical Technology - femoral artery / circulus arteriosus Willisii / internal carotid artery - image - 5
Add to favorites
Compare this product
Go to the Trando 3D Medical Technology website for more information

Characteristics

Area of the body
femoral artery, abdominal aorta, thoracic aorta, circulus arteriosus Willisii, internal carotid artery, anterior cerebral artery, middle cerebral artery, intracranial
Procedure
training, for femoral cannulation, for neurovascular intervention, for angiography, for endovascular treatment
Material
silicone
Accessories
with blood vessels
Other characteristics
transparent, 3D-printed

Description

Product Description

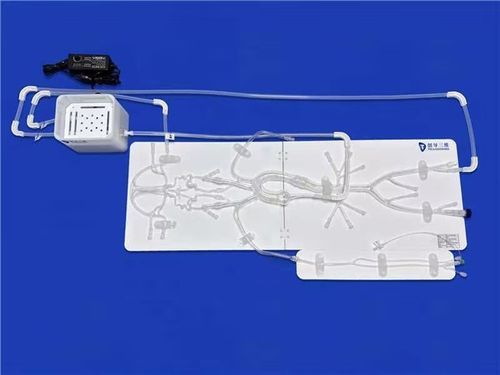

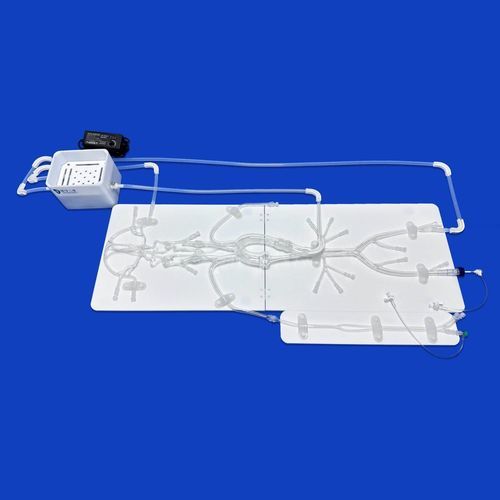

This model extends from the femoral artery to the A2 segment of the anterior cerebral artery and the M2 segment of the middle cerebral artery. It incorporates a complete circle of Willis, bilateral 180° loops and bilateral 360° loops on each side of the ICA (FDA guided). The aortic arch is Type I by default and can be customized to Type II, Type III or variant arches on request. The vascular model is mounted on an acrylic plate. Intracranial, aortic and abdominal sections connect and disconnect via custom connectors; these three modules can be customized or replaced as required. The model is reconstructed from human CT data and optimized to replicate spatial geometry and vessel inner diameters at 1:1 scale. It is 3D printed and produced with silicone vessels for testing, training and demonstration purposes.

Dimensional Drawing (unit:mm)
Dimensional and connection drawings are provided showing overall dimensions, IDs of the neuro part and ICA loops (FDA guided), and IDs of other sections. Images illustrate product layout and connector interfaces.

Application
  • Device development, testing, verification and demonstration for catheters, stents, balloons, guidewires, microcatheters and similar devices.
  • Training and education for various neurointerventional procedures; device marketing and hands-on workshops.
  • Quantitative analysis of blood perfusion using CTA, DSA, MRA, OOT, PIV and Doppler sonography.

Custom Service Options
  • Number, size and location of intracranial aneurysms can be customized.
  • Stenotic lesions, arteriovenous fistulas, emboli or other common intracranial pathologies can be added.
  • Radial artery interventions on both sides can be simulated; aneurysms, stenoses and other lesions can be added to carotid segments.
  • Aortic arch can be customized to Type II, Type III or other variants.
  • More complex structures can be incorporated into the abdominal module.
  • 3D presentation achieved by fixing the model inside a dry transparent acrylic box.
  • Custom models produced from customer-provided CAD, STL, STP, STEP or similar data.

Accessories
  • Pagoda joints
  • Ruhr joints
  • Nylon plugs
  • Silicone tubes
  • Straight-through connectors
  • Corner protectors
  • Hemostatic valve (0-12F)
  • Ruhr sheath tube (0-5F)
  • Simulated clot
  • Portable water bag
  • Plastic tray
  • Aluminum case with custom molds

Characteristics / Technical specifications
  • Model: SJ001D-C
  • Material: silicone shore 40A
  • Scale: 1:1 (based on human CT data)
  • Manufacturing: 3D printed moulds and silicone-replicated vessels
  • Anatomical extent: femoral artery to A2 (ACA) and M2 (MCA)
  • Includes complete circle of Willis; bilateral 180° and 360° ICA loops (FDA guided)
  • Arch: Type I by default; customizable to Type II, Type III or variants
  • Modular design: intracranial, aorta and abdominal parts connectable and disassemblable with custom connectors
  • Intended uses: device testing, training, demonstration and quantitative perfusion analysis (CTA, DSA, MRA, OOT, PIV, Doppler)
  • Customizable lesions: aneurysms, stenosis, arteriovenous fistulas, embolism and more
  • Packaging/fixtures: mountable on acrylic plate or inside dry transparent acrylic box for 3D effect
  • Typical lead time: 5-9 days
  • Typical shipping time: 5-7 days
  • Payment term: T/T
  • Shipping methods: FedEx, DHL, EMS, UPS, TNT
