Hemodynamic simulation pump Pulsatile Pump P110

for medical simulationelectricpulsatile

Product Overview

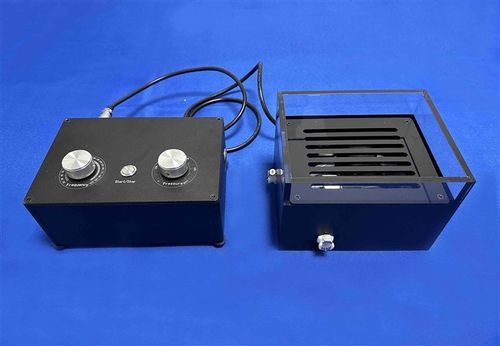

The Pulsatile Pump EDU-P110 is a two-part physiological simulation system consisting of a control box and a separate 3 L water reservoir. It is engineered to connect to silicone vascular models to reproduce heartbeat-like pulsation and controlled blood flow for training and testing. Quick-connect fittings with a self-locking mechanism enable fast, secure connections and reduce leakage risk during detachment.

Basic Information

• Model: EDU-P110
• Payment: T/T
• Shipping Time: 7 days
• Shipping Methods: FedEx, DHL, EMS, UPS, TNT

Product Feature
The EDU-P110 provides adjustable pulsation frequency and pressure to generate stable fluid pressure waveforms suitable for physiological simulation. The separate control box and reservoir allow flexible bench setup and easy maintenance. Compatible with standard saline and buffer solutions used in medical simulations.

Technical Parameters (table)
Item: Physiological Data Acquisition System
Model: EDU-P110
Equipment Weight: Control box: 18 kg; Water tank: 2.55 kg
Equipment Dimensions: Control box: 225 × 170 × 120 mm; Water tank: 212 × 186 × 148 mm
Input Voltage: AC 220 V 50/60 Hz
Continuous Operating Power: 100 W
Pulsation Range: 20–200 BPM (adjustable)
Flow Rate Range: 0.1–6.88 L/min
Waterproof Level: IP54
Compatible Circulating Fluids: Regular water; saline solution; PBS
Water Tank Capacity: 3 L

Technical specifications

• Item: Physiological Data Acquisition System
• Model: EDU-P110
• Equipment Weight: Control box: 18 kg; Water tank: 2.55 kg
• Equipment Dimensions: Control box: 225 × 170 × 120 mm; Water tank: 212 × 186 × 148 mm
• Input Voltage: AC 220 V 50/60 Hz
• Continuous Operating Power: 100 W
• Pulsation Range: 20–200 BPM (adjustable)
• Flow Rate Range: 0.1–6.88 L/min
• Waterproof Level: IP54
• Compatible Fluids: Regular water, saline solution, PBS
• Water Tank Capacity: 3 L
