Brain vascular model SJV003cerebralskullintracranial
Add to favorites
Compare this product
Characteristics
- Area of the body
- intracranial artery, internal carotid artery, common carotid artery, external carotid artery, blood vessels, brain artery, brain, cerebral, skull, intracranial
- Application
- for neurology
- Material
- silicone, resin
- Accessories
- with blood vessels
- Other characteristics
- transparent, 3D-printed
Description
Basic information
Product description

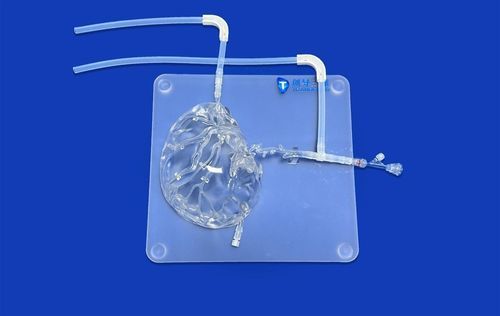

This model reproduces the following arterial anatomy: common carotid artery, internal carotid artery, external carotid artery, facial artery, occipital artery, inferior alveolar artery, maxillary artery, posterior auricular artery and superficial temporal artery. All branches converge into a single loop, reproducing the inner diameters and the three-dimensional spatial configuration of the vessels. The vascular component is mounted on an acrylic sheet with acrylic supports; selected parts of the skull are fixed to the mount. The skull is produced by transparent resin printing to allow visual inspection and imaging during simulation.
Applications
Technical specifications
- Model: SJV003
- Material: Silicone
- Custom service: providing free design service & technical solutions
- Payment: T/T
- Lead time: 7-15 days
- Port: Ningbo, China
- Shipping Methods: FedEx, DHL, EMS, UPS, TNT
Product description
This model reproduces the following arterial anatomy: common carotid artery, internal carotid artery, external carotid artery, facial artery, occipital artery, inferior alveolar artery, maxillary artery, posterior auricular artery and superficial temporal artery. All branches converge into a single loop, reproducing the inner diameters and the three-dimensional spatial configuration of the vessels. The vascular component is mounted on an acrylic sheet with acrylic supports; selected parts of the skull are fixed to the mount. The skull is produced by transparent resin printing to allow visual inspection and imaging during simulation.
Applications
- Intracranial middle meningeal artery intervention training
- Cerebral angiography examinations and simulation
Technical specifications
- Model number: SJV003
- Denomination: Small Neuro Vessel ™
- Material: Silicone
- Included vessels: common carotid artery; internal carotid artery; external carotid artery; facial artery; occipital artery; inferior alveolar artery; maxillary artery; posterior auricular artery; superficial temporal artery
- Anatomical arrangement: all branches converge into a single loop reproducing inner diameters and spatial configuration
- Mounting: model placed on an acrylic sheet with acrylic supports
- Skull: parts fixed; skull printed in transparent resin
- Lead time: 7-15 days
- Payment terms: T/T
- Shipping options: FedEx, DHL, EMS, UPS, TNT (port: Ningbo, China)
- Use cases: endovascular intervention simulation, angiography training
