Ultrasound imaging test phantom FB-A03

for tomographyfor radiographyfor CT scan

Overview

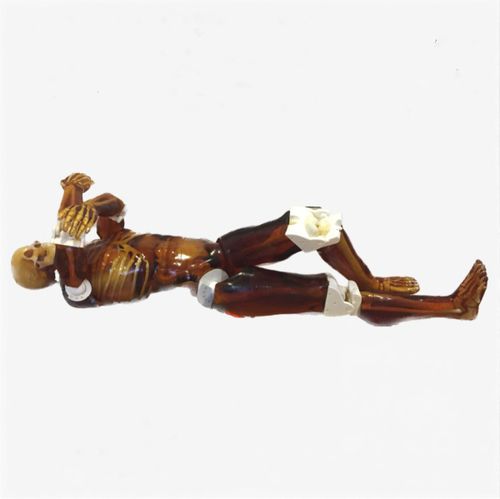

The Adult Full Body Phantom (model FB-A03) is a standard imaging phantom compatible with X‑Ray, CT and ultrasound (US). Designed for training, protocol optimisation and visual evaluation, it represents average adult male anthropometry (~70 kg, ~172–175 cm). Bones use a realistic three‑layer structure with adjustable inner porosity. Optional simulated pathologies and appearance variants are available to meet project requirements.

Important Notes
PLEASE NOTE: MUSCLE LAYERS IN ARMS AND LEGS ARE ONLY INCLUDED IN THE FB-A02 VARIANT. The FB-A03 standard configuration does NOT include arm/leg muscle layers. Appearance options: translucent amber (default) or skin‑mimicking. Certain optional components (muscles, tumor features, additional organs) can be supplied per project.

Anatomy & Included Structures

• Full human body divided into 10 parts (detachable head, torso and limbs)
• Realistic tissue‑mimicking materials for soft tissues and organs
• Rotatable shoulders (360° rotation, 180° lateral)
• Movable hip, knee and elbow joints
• Adult head: skull, brain (grey & white matter), air cavities, frontal sinus, alignment markings
• Adult torso: spine, ribcage, clavicles, trachea, heart, lungs with bronchi and vascular channels, diaphragm, liver (ligaments & bile ducts), gallbladder, stomach, kidneys, spleen, pancreas, intestines, bladder, prostate
• Adult arms: humerus, radius, ulna, elbow, wrist, fingers
• Adult legs: femur, tibia, fibula, knee, foot, toes
• Appearance options: translucent amber (default) or skin‑mimicking

Imaging & Material Characteristics
- Bones: three‑layer cortical/trabecular structure with adjustable inner porosity for realistic radiological response.
- Soft tissues/organs: urethane‑based soft resin with specified acoustic and radiological properties for ultrasound and CT imaging.
- Synthetic bones: patented ceramic‑reinforced epoxy composite reproducing cortical and trabecular behaviour.

Tissue Properties (summary)

• Organs with speckles (e.g., liver, kidneys): Sound velocity 1435 ±10 m/s · Density 0.99 g/cm³ · Attenuation (2.25 MHz) 1.0 ±0.2 dB/cm · Hardness 20 Shore OO · T2 ≈70 ms · Speckles: VARIABLE
• Organs without speckles (e.g., stomach, intestines): Sound velocity 1400 ±10 m/s · Density 0.99 g/cm³ · Attenuation 1.0 ±0.2 dB/cm · Hardness 20 Shore OO · T2 ≈70 ms · Speckles: NO
• Body tissue: 1410 ±10 m/s · Density 1.00 g/cm³ · Attenuation 1.2 ±0.2 dB/cm · Hardness 30 Shore OO · T2 ≈65 ms · Speckles: LOW
• Tumor feature (optional): 1400 ±10 m/s · Density 1.01 g/cm³ · Attenuation 1.2 ±0.2 dB/cm · Hardness 30 Shore OO · T2 ≈65 ms · Speckles: YES
• Cortical bone: 3000 ±30 m/s · Density 2.31 g/cm³ · Attenuation 6.4 ±0.3 dB/cm
• Trabecular bone: 2800 ±50 m/s · Density 2.03 g/cm³ · Attenuation 21 ±2 dB/cm
• Brain matter / white matter: ~1400 ±10 m/s · Density 0.99–1.01 g/cm³ · Attenuation 1.0–1.3 ±0.2 dB/cm · T2 60–70 ms · Speckles: YES
• Muscle tissue (optional): 1400 ±10 m/s · Density 1.01 g/cm³ · Attenuation 1.3 ±0.2 dB/cm · Hardness 35 Shore OO · T2 ≈60 ms · Speckles: YES

Thermal Properties of Bone‑Mimicking Material

• Thermal conductivity: 0.776 W/m·K
• Volumetric specific heat capacity: 1.040 MJ/m³·K
• Thermal diffusivity: 0.746 mm²/s
• Thermal resistivity: 1.289 m·K/W
• Specific heat: 0.978 J/g·°C
• Speed of sound: 3070 m/s

HU Values of Tissue‑Mimicking Materials (avg. at 120 kV)

• Body tissue: -25
• Brain: -25
• Trabecular bone: 800
• Cortical bone: 1300
• Aorta / Vena cava: 40
• Trachea: 80 (tissue) / -1000 (air)
• Lungs: -850
• Liver / Spleen / Kidneys / Pancreas: ≈110
• Stomach (air filled): -850
• Intestines: 80 (tissue) / -1000 (air)

X‑Ray / CT Suggested Settings (selected)

• Skull (AP / LAT): kVp 85 · mAs 20
• Ribs / Chest (LAT / AP): kVp 75/80 · mAs 8/5
• C‑Spine (LAT): kVp 85 · mAs 56
• L‑Spine (AP / LAT): kVp 88/90 · mAs 45/63
• Abdomen (AP): kVp 85 · mAs 25
• Pelvis (AP): kVp 85 · mAs 25
• Femur (AP / LAT): kVp 80/80 · mAs 16/14
• Knee (AP / LAT): kVp 75/80 · mAs 5.6/8
• Foot (AP): kVp 58 · mAs 2

Appearance & Variants

• Default appearance: translucent amber (standard)
• Optional: skin‑mimicking appearance
• Optional muscle layers and simulated lesions/tumours available per variant or custom request (muscle layers only in FB‑A02)

Included in Order

• Adult Full Body Phantom (FB‑A03 standard configuration)
• User manual and assembly instructions
• 2‑year warranty (manufacturing defects)
• Hard carry case

Customization
Custom pathologies (lesions, tumours, infections, anomalies) and optional components (muscle layers, tumour features, additional organs) can be produced to meet project and training requirements.

Technical Specifications

• Model name: Adult Full Body (standard imaging phantom)
• SKU: FB‑A03
• Base anthropometry: ≈70 kg (154 lb), ≈69 in (172–175 cm)
• Phantom composition: urethane‑based soft resin (soft tissues) and ceramic‑reinforced epoxy composite (synthetic bones)
• Number of parts: 10 (detachable head, torso, limbs)
• Joints: rotatable shoulders (360°/180°), movable hip/knee/elbow
• Appearance: translucent amber (default); skin‑mimicking optional
• Optional features: muscle layers (FB‑A02), tumour features, adjustable bone porosity
• Product weight: ≈70 kg (product) · Shipping weight ≈90 kg (199 lb)
• Packed dimensions: 47 × 26 × 18 in (approx.)
• Imaging compatibility: X‑Ray, CT, ultrasound (US)
• Warranty: 2 years (standard)
