The DustTrak™ DRX Aerosol Monitor measures aerosol contaminants such as dust, smoke, fumes and mists.
Leading the industry in real-time dust monitoring, DustTrak™ DRX Aerosol Monitors can simultaneously measure both mass and size fraction. DustTrak DRX monitors are multi-channel, battery-operated, data-logging, light-scattering laser photometers that give you real-time aerosol mass readings and collects a gravimetric sample. They use a sheath air system that isolates the aerosol in the optics chamber to keep the optics clean for improved reliability and low maintenance.

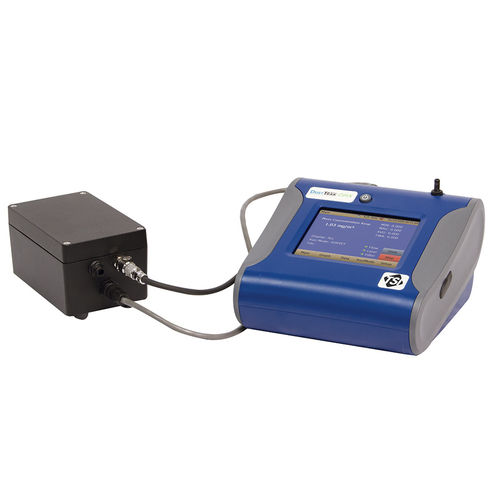

The DustTrak DRX Model 8533EP is outfitted with an external pump module that is designed to handle the rigors of continuous 24/7/365 monitoring applications such as construction sites, fugitive emissions monitoring at environmental sites, and other outdoor applications.
Outdoor environmental monitoring
Baseline trending and screening
Engineering control evaluations
Aerosol research studies
Analog alarm outputs
Rechargeable 7800 mAH Li-Ion battery
Switching power supply with universal line cords
TrakPro™ Data Analysis Software CD
USB (device and host) computer cable
Analog/alarm output connector
Inlet cap (x2)
37-mm gravimetric sample cassette with mesh filter
Calibration impactor kit (with PM2.5 impactor, impactor plates (x2) and impactor oil)
Sample extension tube (3 ft/1 m)
Sheath air HEPA filters (x4)
Filter removal tool
Operation service manual
