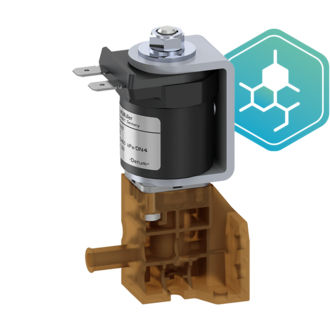

Medical valve U9x.60x.-

vacuumdirect-operatedPTFE

This valve series has been specially developed for use in haemodialysis machines and other medical devices. The design recognizes the specific requirements of this market. Used as an inlet or outlet valve for the balance chamber of a dialysis machine, the valve will work in both flow directions across the complete pressure range. A variety of standard bodies are available to connect to the customer’s balance chamber but customised versions can be produced. The use of high quality plastics and sealing elements made of EPDM or FKM ensure durability even with aggressive media such as dialysate, cleaning agents and disinfectants. The PTFE Bellows ensure a longer lifetime than a rubber membrane as it is less likely to become brittle. All materials meet EU, RoHS and REACH regulations. Applications Haemodialysis machines Medical engineering Water treatment Disinfection equipment Characteristics Special valve for haemodialysis machines Medium separated by PTFE bellow Function and leak tightness in both flow directions Plunger guided by PTFE High flow rate Various fixing options Suitable for pressure and vacuum operation Short cycle types High number of ON-OFF cycles Minimal dead areas in valve body Easy chemical disinfektion Materials with worldwide approvals High operating safety by the use of high quality materials Low power consumption
