Medical valve 04.050.916
insulationdirect-operatedstainless steel

medical valve
medical valve
Add to favorites
Compare this product


Characteristics

Applications
medical
Function
insulation
Technology
direct-operated
Material
stainless steel, PVDF

Description

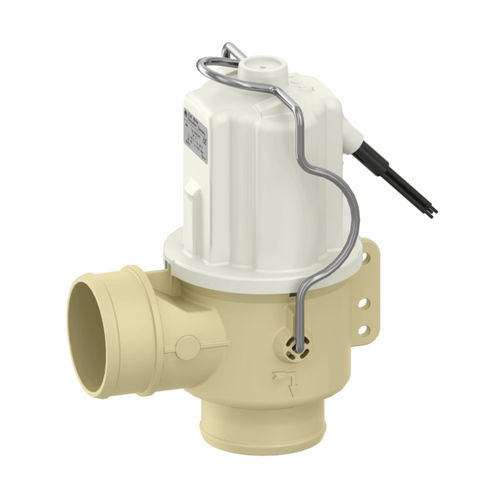

2/2-way direct acting dump valve of nominal diameter DN 50 for controlling low aggressive liquid media, such as cleaning or disinfection agents, direct acting with normally open operation mode NO (normally open). Valves of this type are medium separated having a single chamber valve body with the inlet at ninety degrees to the outlet. They can be manufactured in various materials and equipped with threaded or hose connections. Electrical operating safety is achieved by insulation class F and supported by an integrated protective circuit. Protection type IP 68 is achieved in conjunction with cable connection, IP 65 by using a mounted connector. Valve housing made of PPE or stainless steel are suitable for hot water. Valve housing made of PVDF have a higher resistance to chemicals where stainless steel has both features. The smooth internal shape improves liquid flow and avoids dirt traps. The valve bodies can be equipped with an additional flush spout. Applications Industrial washing machines and dishwashers Cleaning devices for medical equipment Cleaning and disinfecting systems in the dairy industry and process engineering
