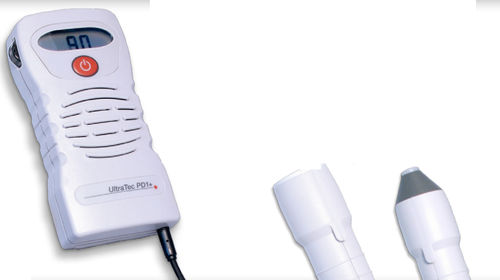

Fetal doppler UltraTec PD1+

pocketwith heart rate monitor

The UltraTec PD1+ is a small, lightweight, high sensitivity pocket Doppler with built in fetal heart rate processing. The 2MHz fetal Doppler probe is ideal for use by a General Practitioner or Midwife for routine antenatal fetal detection. The fetal heart rate is displayed on a large LCD display with the audio signal available to the user via the built in loudspeaker or optional headset with output level controlled by rotary volume control. FHR traces are available by connection of the serial output to the optional UltraTrace 2 PC compatible software. The fetal signals are easily located using the lightweight narrow beam transducer while internal signal processing minimises the noise artefacts. The unit is powered by a standard 9V battery which provides over 9 hours of use. The PD1+ meets all current EEC standards for medical equipment. Features - Large LCD FHR Display - Built in FHR correlation software - Light weight, hand held unit - Fixed probe with retractile cable - Easy clean plastic enclosure - Battery Saver System - Surface mount electronics for high reliabilty - RS232 Connection
