Resting electrocardiograph CV200

12-channelcomputer-basedwired

Product overview
The PC-based 12-channel ECG device CV200 is a compact 12-lead electrocardiograph designed for clinical and outpatient workflows. It acquires simultaneous ECG, VCG and VLP waveforms and connects to a Windows PC via USB for acquisition, storage and analysis. The unit is USB-powered (no battery) and includes anti-defibrillation measures to ensure reliable recordings in environments with defibrillators or other EMI sources.

Key features

• 12 simultaneous channels (12-lead) for comprehensive ECG acquisition
• PC-based operation with USB connectivity to Windows computers
• CardioView software for measurement parameters, multi-panel display and reporting
• Automatic interpretation to assist detection of arrhythmias, ischemic changes and other cardiac conditions
• Real-time storage and analysis of patient ECG data on the connected PC
• Anti-defibrillation support: built-in defibrillation resistor for EMI tolerance
• USB-powered design (battery-free) for simplified clinic integration

Functionality and clinical use
The CV200 records and analyses ECG, VCG and VLP waveforms and supports screening, diagnosis and follow-up of cardiac abnormalities. Automatic algorithms and comprehensive measurement parameters facilitate rapid identification of patients requiring further testing or intervention. Integration with PC workflows enables straightforward archiving, printing and electronic record linkage.

Included components (as shown)

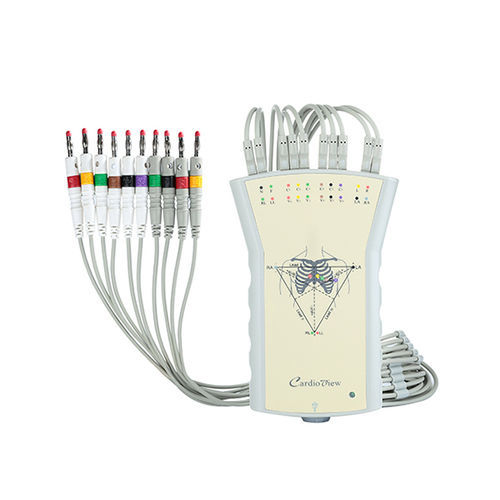

• ECG main unit (ECG box) with 10-lead cable
• Extremity and suction electrodes
• USB cable for PC connection
• Ground cable

Software
CardioView program for acquisition, display, measurement and automatic interpretation of ECG/VCG/VLP data. Software screens include multi-panel waveform views, measurement tools and reporting functions compatible with Windows environments.

Anti-defibrillation and EMI robustness
Design includes a built-in defibrillation resistor and shielding measures to minimize waveform distortion when used near defibrillators, electrosurgical devices or other sources of electromagnetic interference.

Technical specifications

• Model name: CV200
• Channels: 12 simultaneous ECG channels (12-lead)
• Connection: USB to Windows PC
• Power: USB-powered (battery-free)
• Software: CardioView (PC-based acquisition, measurement and automatic interpretation)
• Supported waveforms/views: ECG, VCG, VLP
• Anti-defibrillation: Built-in defibrillation resistor for EMI tolerance
• Accessories shown: 10-lead cable, extremity/suction electrodes, USB cable, ground cable
