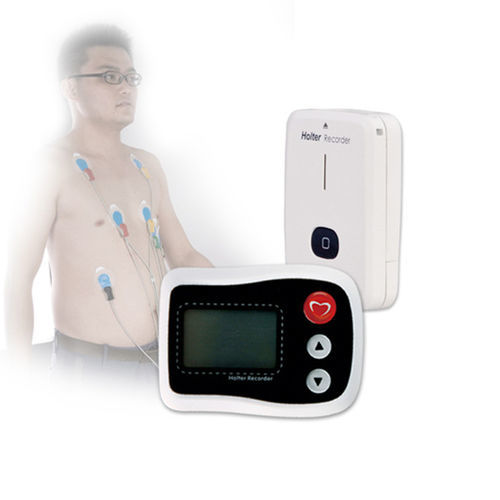

3-channel Holter monitor CV3000

USB

Product overview
The CV3000 is an ambulatory Holter ECG recorder designed for continuous outpatient cardiac monitoring. It supports 3-channel acquisition and 12-lead review, with up to 24-hour standard recording and full-disclosure data capture at a maximum sample rate of 1024 Hz and 8–16 bit resolution.

Indications / Typical uses

• Evaluation of symptoms suggestive of arrhythmia or myocardial ischemia.
• Documenting ECG before and after therapeutic interventions for single patients or cohorts.
• Monitoring for ST-segment changes.
• Assessing patient response to resumed occupational or recreational activities.
• Follow-up of patients with pacemakers.
• Analysis and reporting of time- and frequency-domain heart rate variability.
• Reporting of QT interval measurements.

Key specifications

• Model: CV3000
• Sample rate: up to 1024 samples/sec
• Channels: 3-channel acquisition, 12-lead review
• Recording mode: full-disclosure continuous recording
• Resolution: 8–16 bits
• Download interface: multi-card reader or USB data cable
• Compatible cables: 5-pin, 7-pin and 10-pin

Advantages / Highlights

• Compact ambulatory recorder with clinical-grade signal acquisition and standardized connectors.
• Data transfer via USB cable or removable memory card for flexible workflow.
• Regulatory support: CE, ISO 13485, FDA (Elite Plus) documented.
• Automated analysis with high precision for arrhythmia detection and interval measurement.
• Extended analysis modules (examples: Heart Rate Turbulence, VE Chaos, HRT) to support detailed clinical and epidemiological studies.

Service & supply information

• MOQ: 1 unit
• Package: standard packaging
• Delivery time: within 7 working days after receipt of payment
• Payment methods: TT, credit card
• Warranty: 1 year
• Technical support: online remote support available
• Supply capacity: 25 units per week

Technical characteristics / Specifications

• Model: CV3000
• Sample rate: 1024 samples/sec max
• Channels: 3-channel acquisition, 12-lead
• Recording: full-disclosure continuous
• Resolution: 8–16 bits
• Download interface: multi-card reader or USB data cable
• Cable support: 5-pin, 7-pin and 10-pin cables
• Certifications: CE, ISO 13485, FDA (Elite Plus)
• Functions: Heart Rate Turbulence (HRT), VE Chaos analysis, QT interval reporting, heart rate variability reporting
• MOQ: 1 unit
• Packaging: standard package
• Delivery time: within 7 working days after payment
• Payment: TT, credit card
• Warranty: 1 year
• Technical support: online remote support available
• Supply ability: 25 units per week
