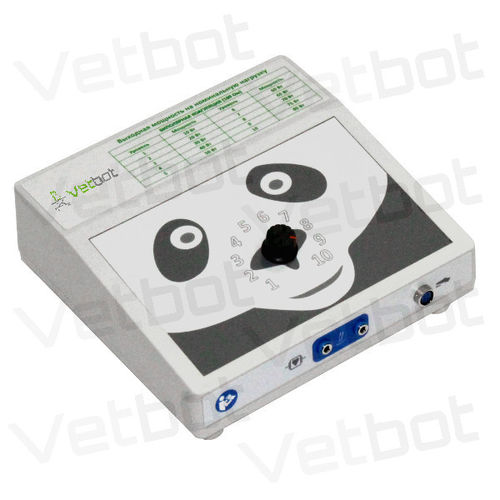

Bipolar coagulation veterinary electrosurgical unit 80

veterinary surgerygeneral surgeryhigh-frequency

Modern medium power high-frequency electrosurgical unit (ECHF). Designed for coagulation of biological tissues and vessels in veterinary surgery. Designed for bipolar techniques: Tweezers, Scissors, Non-contact SPRAY coagulation. The front panel of the device is a film resistant to various detergents and sterilizers, under which the indication is located. The device provides continuous operation for 8 hours with repeated short-term load with activation time of no more than 10 seconds and subsequent waiting time of no less than 30 seconds. Main characteristics: Mains: 220V, 50Hz Nominal basic frequency: 440 ± 20 kHz Rated output power: 80 W Nominal load: 100 Ohm Peak voltage: not more than 150 V Mains power consumption: 120 VA max. Sound level: not less than 65 dBA at (1000±50) Hz Ambient operating temperature range: +10°C to +35°C Permissible relative humidity: 20-80%, no condensation Overall dimensions of the main unit: 225x227x86 mm Weight of the main unit: not more than 8 kg VETBOT-80 bipolar electrosurgical unit is used in all types of veterinary institutions: Veterinary stations and private clinics; Clinics and centres - with operating theatres; State veterinary services; Veterinary stations; Veterinary production services; Veterinary emergency services. Complete set options: 1. Standart Electrosurgical unit. Bipolar tweezers with non-stick properties. Foot pedal. 2. Enhanced №1 Electrosurgical unit. Bipolar tweezers with non-stick properties. Foot pedal. High voltage electrode for non-contact coagulation. 3. Enhanced №2 Electrosurgical unit. Bipolar tweezers with non-stick properties. Foot pedal. Bipolar instrument switch. Bipolar scissors.
