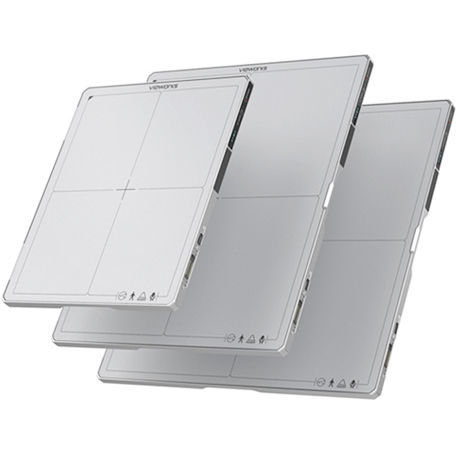

Veterinary radiography flat panel detector VIVIX-S 2530VW

portablewireless10 x 12

Superior Image Quality High MTF & DQE Easy Upgrade Anytime™: Vieworks' proprietary AED (Automatic Exposure Detection) technology with reliable performance Excellent Durability 1) Protects against harmful dust 2) Protects from immersion in water with a depth of up to 1 m for up to 30 min Temperature Stability: 0 degree Celsius to 40 degree Celsius Strict Reliability Test : 1) 100 cm drop-tested 2) load limit of 400kg Real Mobility Greater Portability: light weighted (1.95 kg) and built-in handles to easy carry Convenient Charging : a variety of charging methods (standard USB-C interface, magnetic tether connector, cradle) OLED Status Screen : easy check on battery charge level, wired/wireless connection mode, sleep mode status Specifications Technology a-Si TFT Scintillator CsI Pixel Pitch 124 ㎛ Spatial Resolution4.0 lp/㎜ Pixel Matrix 2048 x 2560 pixels Grayscale 16 bits Image Acquisition Time 3 s Recommended Cycle Time 4 s Data Interface Gigabit Ethernet IEEE 802.11n / ac X-ray Generator Interface - DR trigger Mode AED Mode Dimensions 28.7 ㎝ x 35.0 ㎝ x 1.5 ㎝ Weight 1.95 kg PLUS: 2.1kg Battery Lithium Ion 3400mAh x 1 8 h (standby) * 1,250 images at a 15-second cycle. X-ray Voltage Range 40 - 150 kVp Operating Environment 0°C to 40°C 5 % to 90 % RH (non-condensing) Power Consumption Normal: Max. 15W Charging: Max. 50W
