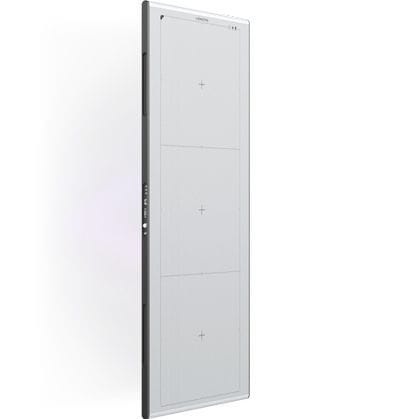

Multipurpose radiography flat panel detector VIVIX-S 1751S

wireless17 x 51

Low dose exposure for patients Streamlined workflow with short image acquisition time (8 sec.) Superior Image Quality Pixel Pitch : 140 ㎛ Multi-scan mode Multi-scan mode for selective body part imaging Specifications Technology a-Si TFT Scintillator Gadox Pixel Pitch 140 ㎛ Spatial Resolution 3.5 lp/㎜ Pixel Matrix 3072 x 9216 pixels 3072 × 6144 pixels 3072 × 3072 pixels Grayscale 16 bits Image Acquisition Time 8 sec. Recommended Cycle Time 15 sec. Data Interface Gigabit Ethernet X-ray Generator Interface DR trigger Mode AED Mode Weight 19.7kg X-ray Voltage Range 40 - 150 kVp Operating Environment 10℃ to 35℃ 30 % to 85 % RH (non-condensing) Power Consumption DC 24 V, 3.0 A
