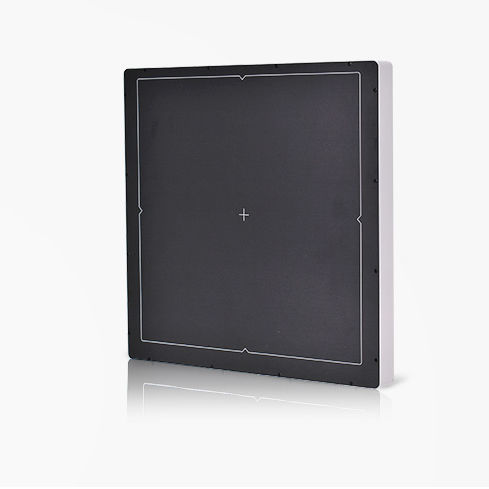

Fluoroscopy flat panel detector VIVIX-D 0909G

portable9 x 9

Superior Image Quality High MTF & DQE Real-time Image Correction Designed for Mobile C-arm Frame Rate : 30 fps @ 1 x 1 / 60 fps @ 2 x 2 Automatic Image Rotation Easy Integration : Vieworks provides the generator I/F unit Specifications Technology a-Si TFT Scintillator CsI Pixel Pitch 179 ㎛ Spatial Resolution 2.7 lp/㎜ Pixel Matrix 1280 x 1280 pixels Grayscale 16 bits Max. Frame Rate Full size: 30 fps 2x2 binning: 60 fps Data Interface Gigabit Ethernet Dimensions 26.1 ㎝ x 25.6 ㎝ x 5.0 ㎝ Weight 2.9 kg Boot-up Time less than 30 s Operating Environment 10℃ to 35℃ 30 % to 85 % RH (non-condensing) Power DC 12 V, 1.7 A
