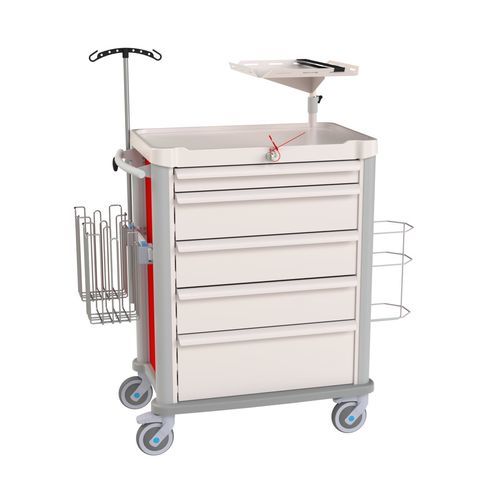

Emergency trolley Eolis®

for consumablesfor defibrillatorstainless steel

Modular emergency trolley designed for storage and organization of medical accessories in ISO 600 x 400 format, supplied in equipped configuration (E03). The trolley combines a lightweight aluminium and steel structure with ABS panels and components for daily hospital use.

Standard equipment:

• Central locking with sealable lock + 1 set of 50 numbered seals
• 5 flush drawers 600 x 400 format: 1 × 1 module (H.75 mm), 3 × 2 modules (H.150 mm), 1 × 3 modules (H.225 mm)
• CPR backboard
• Defibrillator support
• IV pole
• Oxygen cylinder holder
• Single stainless-steel waste bag holder 20 L

General description:

• Modular design with internal ABS rail system allowing fitting of ISO 600 x 400 accessories (drawers, bins, trays).
• Open front, closed on 5 sides; closure by flush drawers or removable ABS roller shutter (top → bottom). Option for central locking.
• Structure in anodised aluminium and epoxy-coated steel; side panels and base in ABS available in 8 colours.
• Wraparound ABS bumper (grey).
• Worktop in ABS/PMMA (beige) with raised side edges.
• Ergonomic push handle and two standardized height-adjustable rails (one each side).
• Swivel castors Ø 125 mm (2 with brake); polyamide forks, non-marking grey rubber tread, stainless steel ball bearings and anti-threading device.

Technical specifications:

• Product reference: 1006.01E03
• Model: Eolis®
• Accessories format: ISO 600 x 400
• Drawer configuration: 1 × 1 module (H.75 mm), 3 × 2 modules (H.150 mm), 1 × 3 modules (H.225 mm)
• Worktop: ABS/PMMA, dimensions 705 x 415 mm
• Structure: anodised aluminium + epoxy-coated steel
• Panels: ABS (sides and base), 8 colours available
• Closure: flush drawers or removable ABS roller shutter
• Locking system: centralised (lock with seal and set of seals supplied)
• Supplied accessories: CPR backboard, defibrillator support, IV pole, oxygen cylinder holder, 20 L stainless-steel waste bag holder
• Manoeuvrability: ergonomic handle + 2 standardized height-adjustable rails
• Wheels: Ø 125 mm, 2 with brake, polyamide forks, non-marking rubber tread, stainless bearings
