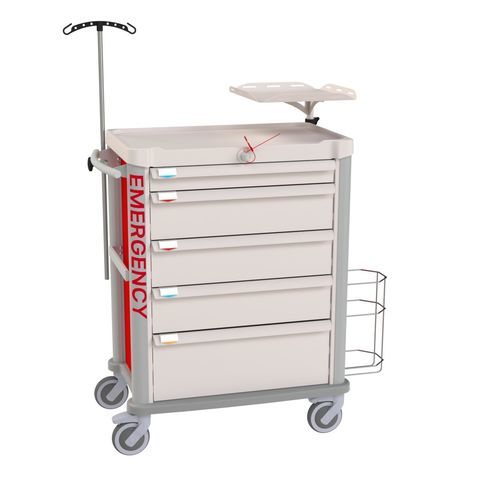

Emergency trolley Eolis®

for defibrillatorplasticaluminum

Overview
Modular emergency cart designed to accommodate accessories in ISO 600x400 format. Open-front cart, closed on 5 sides, available with flush drawers or removable ABS roller shutter. Structure combining anodized aluminium and epoxy-coated steel, ABS panels and wraparound ABS bumper (grey). Fitted with an ABS/PMMA worktop and high-resistance swivel castors.

Equipped as standard with :

• central locking with sealable lock + set of 50 numbered seals
• 5 flush drawers 600x400 with label holders (1 x 1 module + 3 x 2 modules + 1 x 3 modules)
• cardiac massage board
• defibrillator bracket
• IV pole
• oxygen cylinder holder
• "EMERGENCY" sticker

Technical description

• Modular design with internal ABS ladders (rails) enabling ISO 600x400 accessories (drawers, bins, trays)
• Open-front cart, closed on 5 sides — closure by flush drawers or removable ABS roller shutter (top → bottom) — central locking optional
• Structure in anodized aluminium and epoxy-coated steel; ABS panels (sides and bottom) — 8 colours available
• Wraparound ABS bumper (grey)
• ABS/PMMA worktop (beige) with raised side edges — dimensions: 705 x 415 mm
• 1 ergonomic push handle and 2 standardized rails (one each side), height-adjustable
• Swivel wheels Ø 125 mm, 2 braked — polyamide forks — grey non-marking rubber tread — stainless steel ball bearings — fitted with anti-wire guards

Composition / Equipment (detailed)

• Locking: central with sealable lock + set of 50 numbered seals
• Drawers: 5 flush drawers 600x400 with label holders (configuration: 1 x 1 module, 3 x 2 modules, 1 x 3 modules)
• Rescue accessories: cardiac massage board, defibrillator bracket
• Medical accessories: IV pole, oxygen cylinder holder
• Identification: "EMERGENCY" sticker supplied

Characteristics / technical specifications

• Product reference (variant): 1006.01E01
• Model / series: Eolis®
• Brand: Villard Médical
• Compatible drawer format: ISO 600 x 400 mm
• Number of drawers supplied: 5 (configuration 1x1 / 3x2 / 1x3 modules)
• Worktop: ABS/PMMA, 705 x 415 mm (with raised edges)
• Structure: anodized aluminium + epoxy-coated steel
• Panels: ABS (sides and bottom) — 8 colours available
• Bumper: ABS, grey, wraparound
• Wheels: swivel Ø 125 mm, polyamide forks, grey non-marking rubber tread, stainless bearings — 2 wheels braked
• Handle and rails: 1 ergonomic handle + 2 standardized rails height-adjustable
• Supplied equipment: massage board, defibrillator bracket, IV pole, oxygen holder, numbered seals, "EMERGENCY" sticker
• Option(s): central locking (standard on this variant)
• Manufacture: made in France (Villard Médical)
