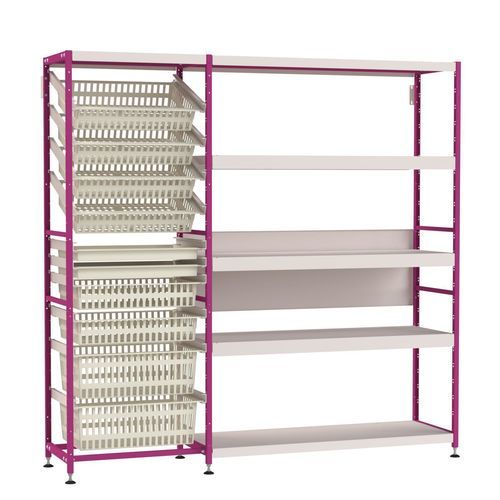

Modular shelving unit Eolis®

inclined

Fixed modular shelving Eolis® with 400 mm depth, designed for medical storage in hospitals, clinics and laboratories. Available as base or extension units with selectable widths and configurations to suit storage layouts.

Configuration

• Model options: Base, Extension
• Width options: 600 mm; 1000 mm; 1200 mm
• Depth: 400 mm

Technical specifications

• Product reference: 1002.31
• Welded epoxy-coated steel frame with U-profile perforated uprights (75 mm pitch), assembled by square-tube braces
• Bases and extensions supplied standard with rear stiffener
• Mounted on adjustable threaded feet for height adjustment
• Module capacity: 22 modules (with straight rails) / 20 modules (with at least one inclined rail)
• Maximum load per shelf: 200 kg
• Finish: epoxy coating, 8 colour options
