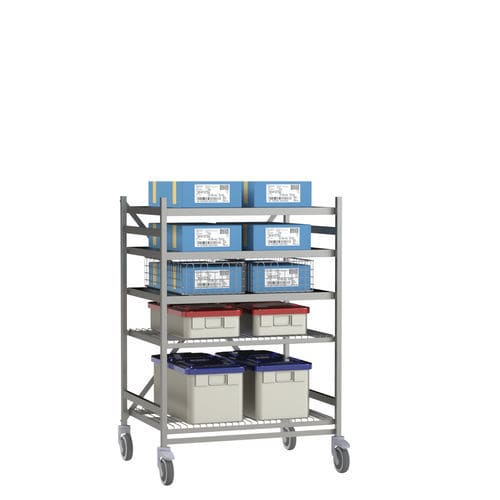

6-shelf shelving unit 830.43

for containersmobilestainless steel

Overview

Mobile stainless steel shelving designed for modular storage in medical environments. Depth 600 mm. Configurable units compatible with stainless steel bins and containers to optimize storage workflows.

Main features:

• Welded side uprights in stainless steel 18/10 (AISI 304) made from square tubes (25 x 25 mm) with welded supports spaced at 190 mm.
• Assembly reinforced by cross-braces and a front linkage bar for improved rigidity.
• Storage elements (shelves and stainless supports) and supports for containers/bins sold separately, configurable to application needs.
• Swivel wheels Ø 125 mm in polyamide, 2 wheels equipped with brakes.

Configuration options:

• Available heights/capacities: 6 levels (H 1245 mm), 8 levels (H 1625 mm), 10 levels (H 2005 mm).
• Available widths: L 800 mm, L 1000 mm, L 1300 mm.

Compatible accessories:

• Stainless steel shelves, supports for containers and bins (sold separately) for adaptation to specific storage requirements.

Technical specifications:

• Product reference: 830.43
• Maximum load per shelving unit: 200 kg
• Material: stainless steel 18/10 (AISI 304)
• Upright section: square tubes 25 x 25 mm
• Support spacing: 190 mm
• Wheels: Ø 125 mm polyamide (2 brakes)
• Depth: 600 mm
• Available heights: 1245 mm (6 levels), 1625 mm (8 levels), 2005 mm (10 levels)
• Available widths: 800 mm, 1000 mm, 1300 mm
