Transport stretcher trolley 203.15

patient transferhydraulicTrendelenburg

Overview

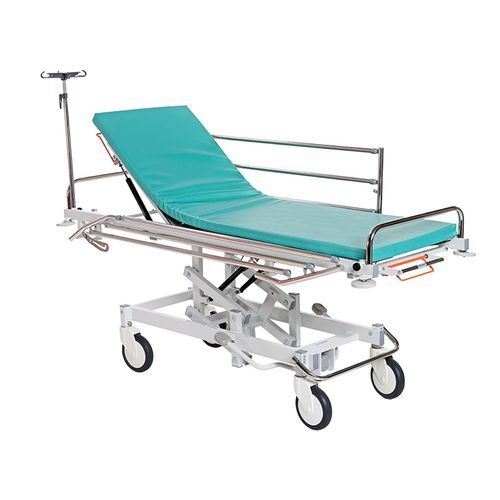

Variable-height patient trolley designed for transport and handling of patients with Trendelenburg/reverse Trendelenburg tilt and adjustable backrest. Ref. 203.15

Main functions

• Hydraulic height adjustment with foot control
• Trendelenburg / reverse Trendelenburg tilt
• Adjustable backrest operated by gas spring

Construction and equipment

• Epoxy-coated steel chassis
• Bumper rollers on the corners
• Two-section HPL radiolucent sleeping platform
• PU foam mattress with removable vinyl cover and securing velcros
• Retractable side rails and fixed stainless-steel handles
• Stainless IV pole with 4 plastic hooks
• Ø 200 mm wheels with centralized locking

Manufacturer information
Manufactured in France by Villard Médical. Warranty up to 10 years on factory-made products (excluding electronic components and wear parts). Eco-designed products; modular furniture made from recyclable materials.

Technical specifications

• Product reference: 203.15
• Overall dimensions: L. 2090 x W. 790 x H. 570 > 910 mm (adjustable height)
• Sleeping surface dimensions: L. 1920 x W. 630 mm
• Maximum load: 250 kg
• Sleeping platform: 2 sections, HPL radiolucent
• Mattress: PU foam, removable vinyl cover, securing velcros
• Chassis: epoxy-coated steel
• Wheels: Ø 200 mm, centralized locking
• Integrated accessories: retractable side rails, stainless handles, stainless IV pole with 4 hooks
